Juuko® K1010 system

Name: Juuko® K1010 system
Brand: Juuko®
SKU: 10683
Availability: InStock

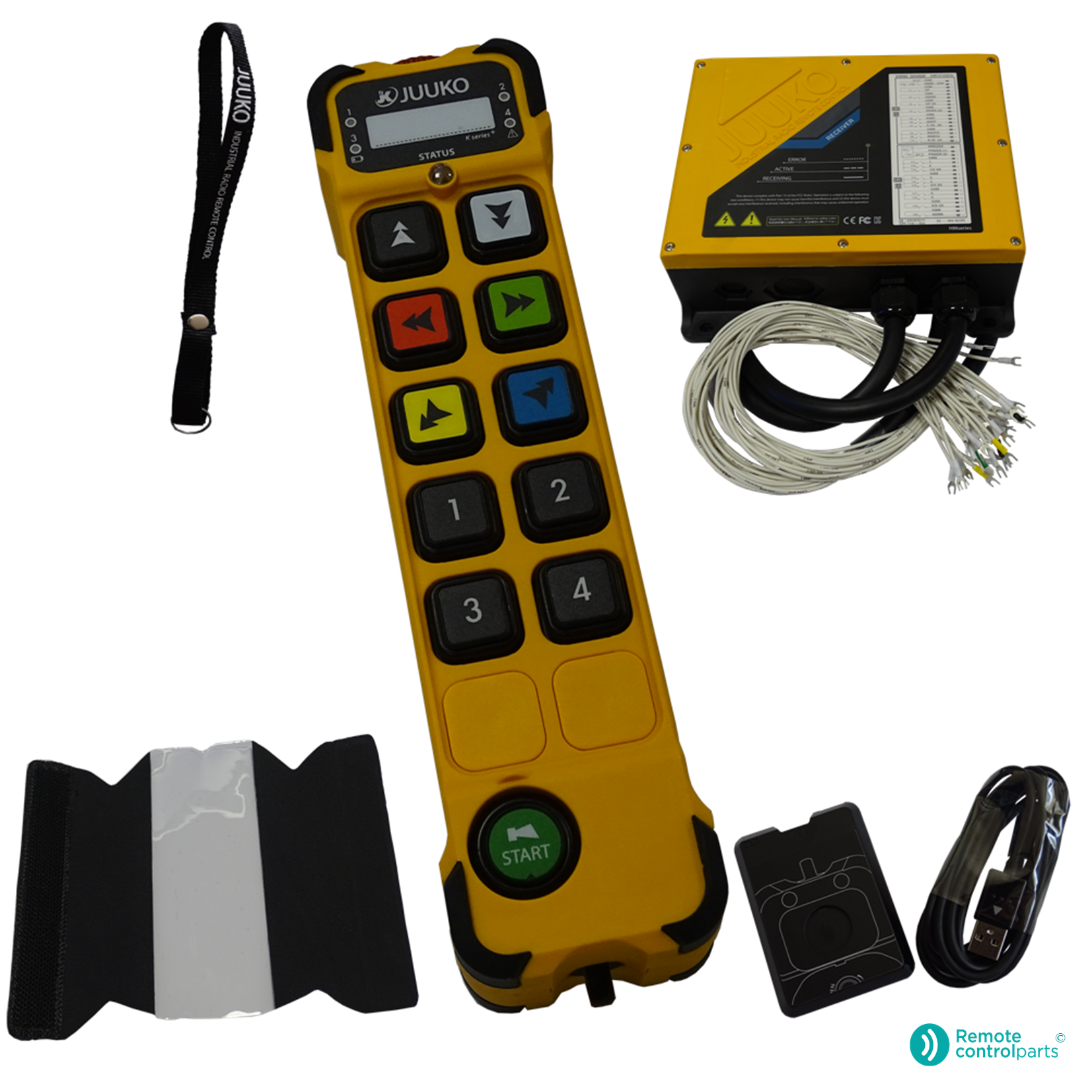

Juuko® K1010 system
Original spare part

Juuko® transmitter K1010, 10 push buttons, start button, stop button
Juuko® receiver HM-K1010
Juuko® Q1, wireless charger (suitable for K-series transmitters from 2016, recognizable by a green border “wireless charger” on the back.

For transmitter: Juuko® K1010

From € 1.038,93

per piece

excl. VAT

From € 1.257,11 incl. VAT

In stock, shipped within 1-2 working days

Wireless Controllers:

Clear

Number of pieces:

Total price:

€ 1.038,93

excl. VAT

Request a quote

Description

Juuko® K1010 system
Original spare part

Click on options for the correct wireless controllers. The following versions are available:
– Juuko® K1010 complete system, with internal antenna

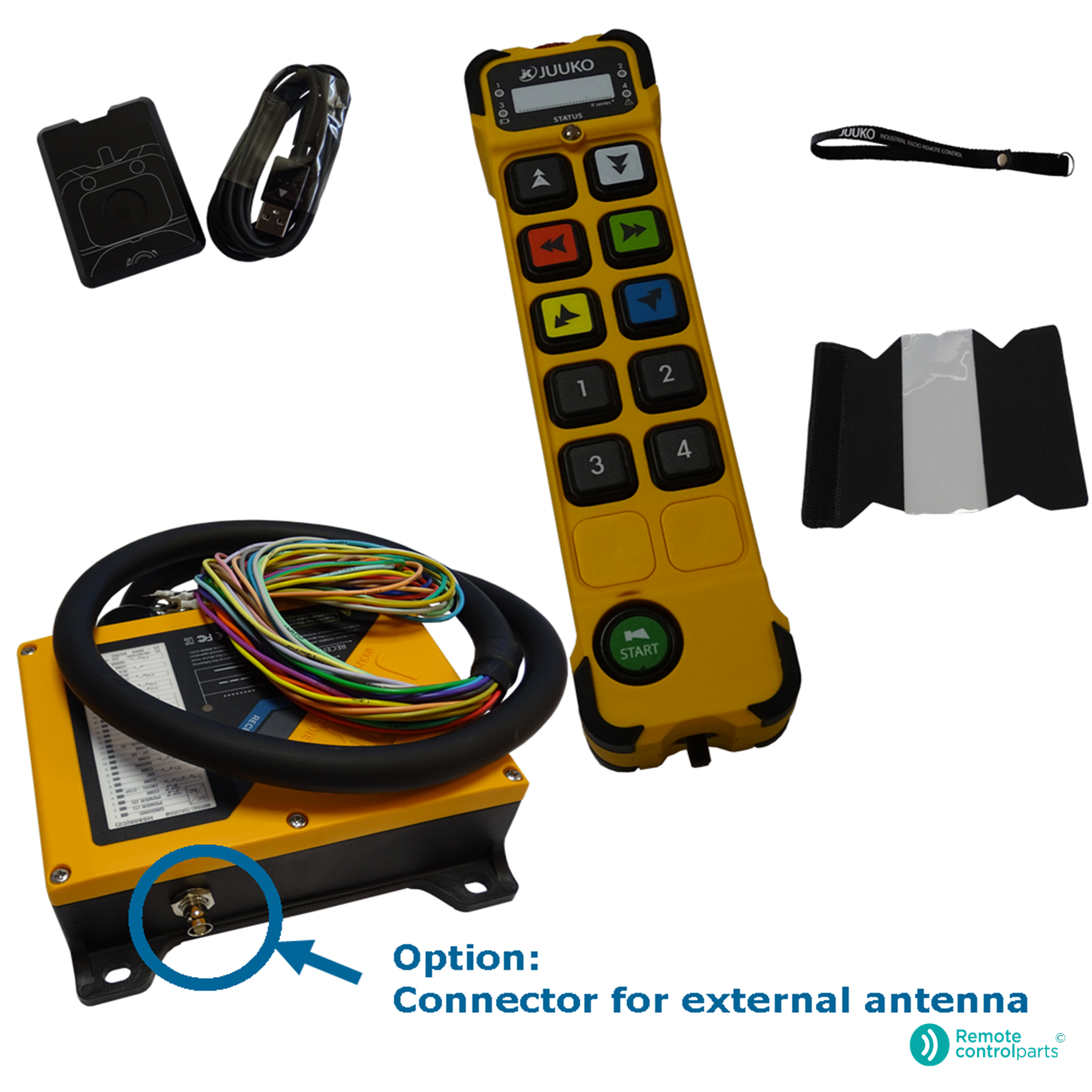

– Juuko® K1010 complete system, with BNC external antenna connector (exclusive antenna). Click on BNC antenna with cable to add the antenna.

Juuko® transmitter K1010:
10 push buttons with second step
Start button
Stop button
Frequency: 433.075/434.900 MHz
IP65 class
Range: 100 meters
Use Temperature: -10 ° C to 65 ° C
Power supply: 2 x AA rechargable batteries
Dimensions: 230 mm x 57 mm x 51 mm (LxWxD)

Juuko® receiver HM:
Frequenty: 433.075/434.900 MHz
IP65 class
Power supply: 24-264 VAC/DC
Use Temperature: -10°C tot 65°C
Dimensions: 272 mm x 260 mm x 96 mm (LxWxD)
Optional: 12 VDC receiver power supply

Juuko® wireless charger Q1
USB to wireless charger
Suitable for all K-series from 2016, the suitable transmitters are identified by a green border “wireless charger” at the rear. The K-series transmitter manufactured before 2016 doesn’t have a “wireless charger” option.

Other:
Protective cover
Hand strap
User manual
Wiring diagram
Optional: external antenna

For transmitter: Juuko® K1010

Specifications

Weight	N/A
Brands	Juuko®
Remote control type	Wireless control
Complete systems	Complete system
Controller type	Push Button
Frequency	434 MHz (frequency block)
Stop Button	With Stop Button
Number of push buttons	10
Battery technology	AA rechargeable
Voltage	VAC, VDC
Country of Origin (CO)	Taiwan
HS code	8526920090
