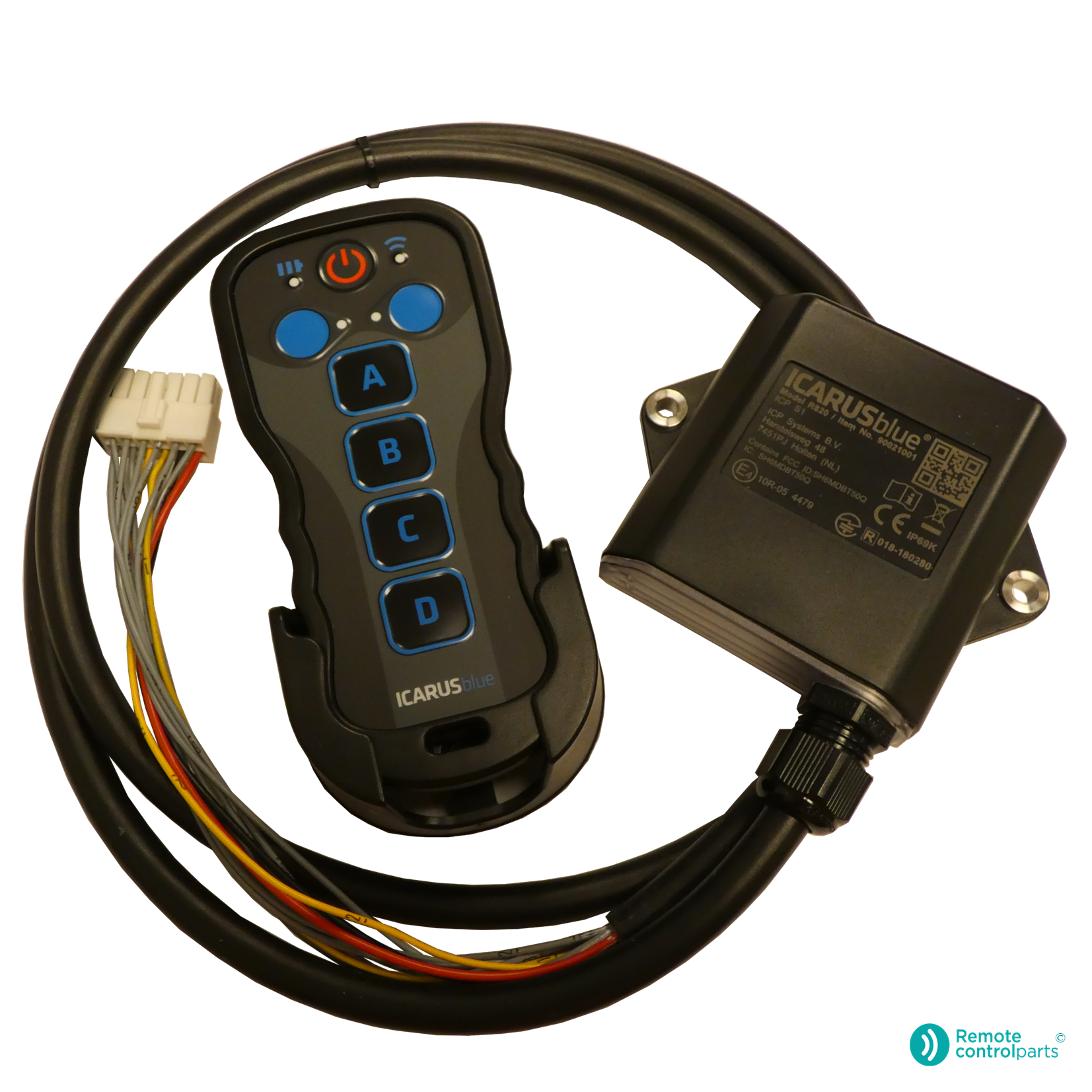

ICarus Blue TM600 + R820 standard, system

Name: ICarus Blue TM600 + R820 standard, system
Brand: Icarus®
SKU: woocommerce_gpf_9812
Price: 552.31 EUR
Availability: InStock

ICarus Blue TM600 + R820 standard, system
Original spare part

ICarus Blue TM600 transmitter:
– 2 selection buttons and 4 function buttons
– 2.4 GHz (bluetooth 5.0)

ICarus Blue R820 receiver:
– Receiver incl. 12-wire connection cable (1.5 m),
– Bluetooth radio

The ICarus Blue is the replacement for the ICarus Mini

Original spare part: 9003101

€ 552,31

per piece

excl. VAT

€ 668,30 incl. VAT

In stock, shipped within 1-2 working days

Number of pieces:

Total price:

€ 552,31

excl. VAT

Description

ICarus Blue TM600 + R820 standard, system
Original spare part

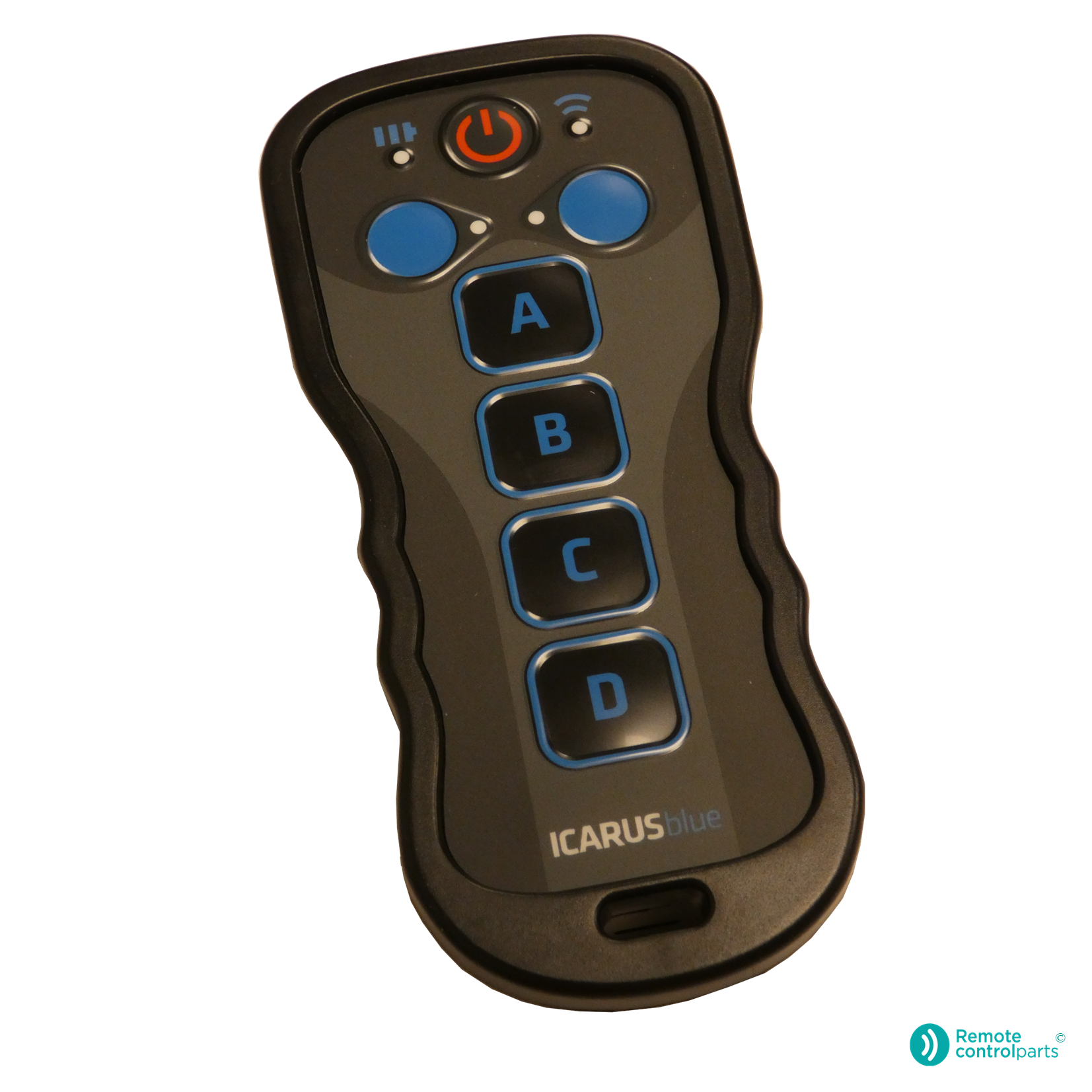

ICarus Blue TM600 transmitter
– Membrane keyboard with 1 On/off button
– 2 selection buttons and 4 function buttons
– 2.4 GHz (bluetooth 5.0)
– Internal antenna
– Transmitting power: +8dBm
– Operating range: approx. 100m. (depending on the environment)
– Power supply: 3.7 VDC
– Battery: Li-Po, rechargeable, 1350 mAh
– Charging cable: USB-C to USB-A (1 m)
– Housing: ABS
– IP67
– Temperature range: -20˚C to +50˚C
– Dimensions: 137 mm x 65 mm x 35 mm (lxwxh)
– Weight: 113 grams

ICarus Blue R820 receiver
– Receiver incl. 12-core connection cable (1.5 m)
– Bluetooth radio
– 8 digital outputs & 2 digital inputs
– 2.4 GHz (bluetooth 5.0)
– Internal antenna
– Transmission power: +8dBm
– Operating range: control via TM600 transmitter: approx. 100m. (depending on the environment)
– Operating range: control via app: approx. 30m. (depending on the environment)
– Power supply: 9-36 VDC
– Housing: cast ABS, IP69K (when used correctly)
– Temperature range: -40˚C to +60˚C
– Dimensions: 80 mm x 102 mm x 24 mm (lxwxh)
– Weight: 392 grams (including cable)

Other
– Manual
– TM holder

The ICarus Blue is the replacement for the ICarus Mini

Original spare part: 9003101

Specifications

Weight	0,790 kg
Dimensions	32 × 23 × 10,5 cm
Number of push buttons	4, Other
Battery technology	LiPo, Other
Complete systems	Complete system
Country of Origin (CO)	Netherlands
Frequency	2.4 GHz (frequency block)
HS code	8526920090
Brands	Icarus®
Remote control type	Wireless control
Stop Button	Without Stop Button
Controller type	Push Button
Voltage	VDC
