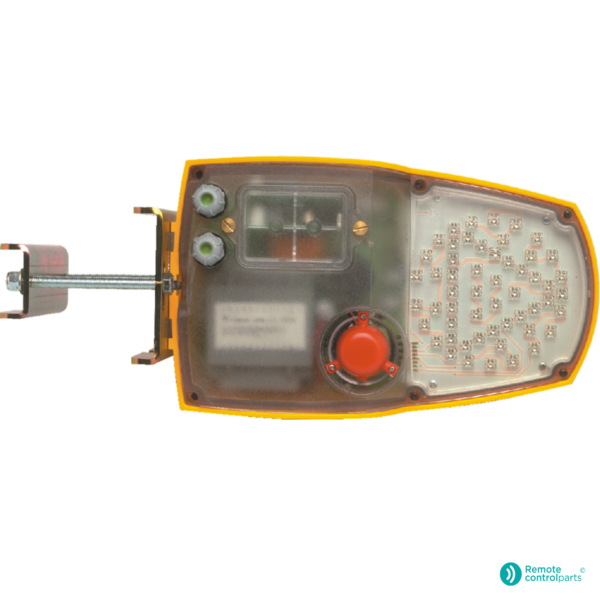

Wind meter / anemometer ANM400
Original spare part
The Itowa anemometric indicator meets the requirements of the ITC “MIE.AEM-2” of the regulations for lifting and maintenance equipment, whereby flashing light and intermittent acoustic signals are activated when the wind speed reaches 50 km/h, orange LED light (amber light). At a wind speed from 70 km/h, the fixed signals and red LED light are activated.
With the personalization options, the “autotest” function signals can be adjusted.
Sensor: Optical measuring principle measuring range 0-30 m/s (0-108 km/h), resolution 0.06 m/s
Signal: Dual tone – 110 dB
Lights: High brightness LED (100 million cycles) Amber triangle for warning signal (55 candela) Red circle for alarm signal (98 candela)
Frequency: 1 Hz flashes (60 / min)
Protection: IP65
Working temperature: -20 a + 60 ºC
Power supply: 48/115/230/400 Vac – 10 VA
Optional: fastening by magnets, external sensor (with folding stand), metal sensor (heated or unheated), an RS485 output for peripherals (display, recorder, etc.)
Original spare part: ANM400
