SMD Funk industrial system, 24V

Name: SMD Funk industrial system, 24V
Brand: TRL®/SMD®
SKU: 10354
Availability: InStock

SMD Funk industrial system, 24V
Original spare part

SMD Funk industrial transmitter
Transmitter: 9V
SMD industrial receiver
Receiver: 24V

Item number: -

From € 700,18

per piece

excl. VAT

In stock, shipped within 1-2 working days

SMD Funk industry (hand) system:

Clear

Number of pieces:

Total price:

€ 700,18

excl. VAT

Description

SMD Funk industrial system, 24V
Original spare part

SMD Funk industrial transmitter
40 MHz or 433 MHz frequency range
Range approx. 50 meters to 75 meters
Safety coding with 1024 different settings.
Up to 400 different switching commands.
The transmitters are suitable for fixed mounting on, among other things, forklift trucks.

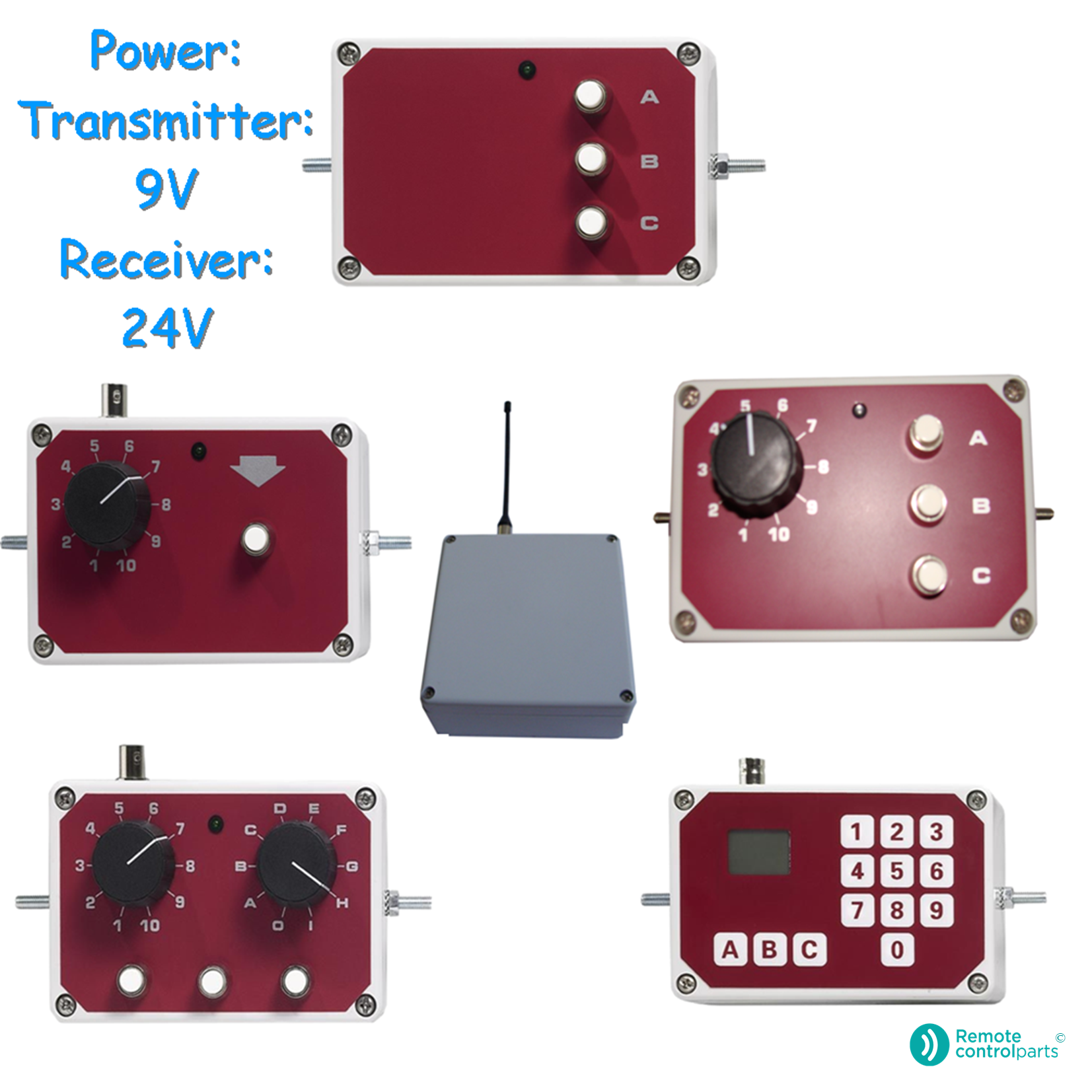

Available in different versions:
– SMD industrial transmitter 1K: with 3 function keys;
– SMD industrial transmitter 1-10K, 1: with 1 function key and 1 rotary knob. The transmitter has a maximum of 10 switching commands;
– SMD industrial transmitter 1-10K, 3: with 3 function keys and 1 rotary knob. The transmitter has a maximum of 10 switching commands;
– SMD industrial transmitter 1-100K: with 3 function keys and 2 rotary knobs. The transmitter has a maximum of 400 switching commands;
– SMD industrial transmitter 1-100K LCD: with 3 function keys, 2 rotary knobs and LCD screen. The transmitter has a maximum of 400 switching commands.

Power supply: 9V battery, also available with battery connection cable
The SMD Funk industrial transmitter can also be operated with gloves on.
Dimensions: 120 mm x 80 mm x 60 mm

SMD industrial receiver
Receiver with 1, 2, 3, 4 or 8 relays possible
Power supply: 24 VDC
Dimensions receiver 1 to 4: 120 mm x 120 mm x 55 mm
Dimensions receiver 8: 200 mm x 120 mm x 75 mm

SMD industrial antenna
BNC antenna 433 MHz, standard
Antenna with a longer range on request.

Specifications

Weight	N/A
Brands	TRL®/SMD®
Remote control type	Cable control, Wireless control
Complete systems	Complete system
Controller type	Other
Frequency	40 MHz (frequency block), 434 MHz (frequency block)
Voltage	VDC
Number of push buttons	Other
Battery technology	9V
Stop Button	Without Stop Button
Country of Origin (CO)	Italy
HS code	8526920090
