Item number: 04.487.5
NBB® Planar D1/Compact M2-R7 12/2, system
Original spare part

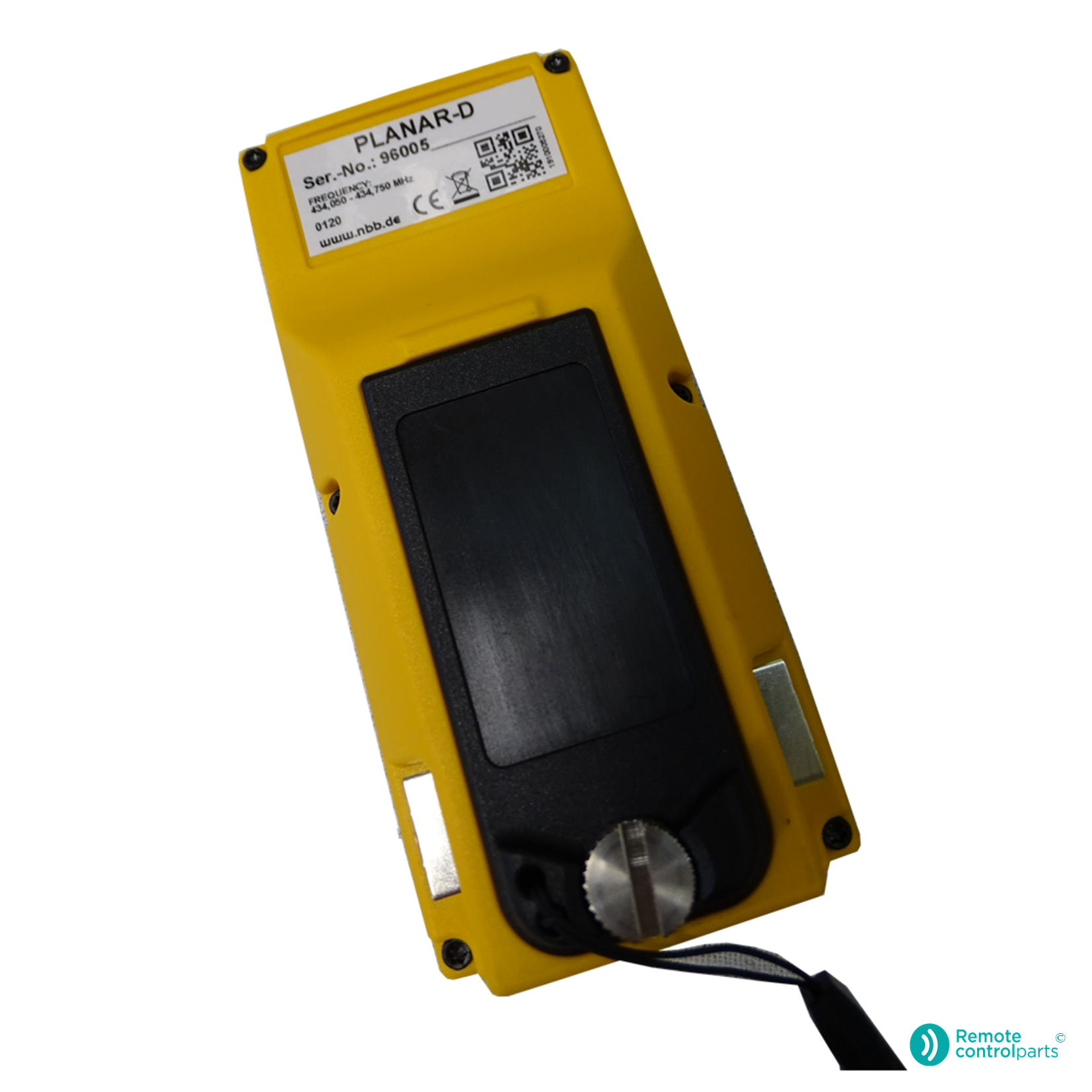

NBB® Planar D1 transmitter:
8 pushbuttons, single-step
start pushbutton
stop pushbutton
excl. VAT

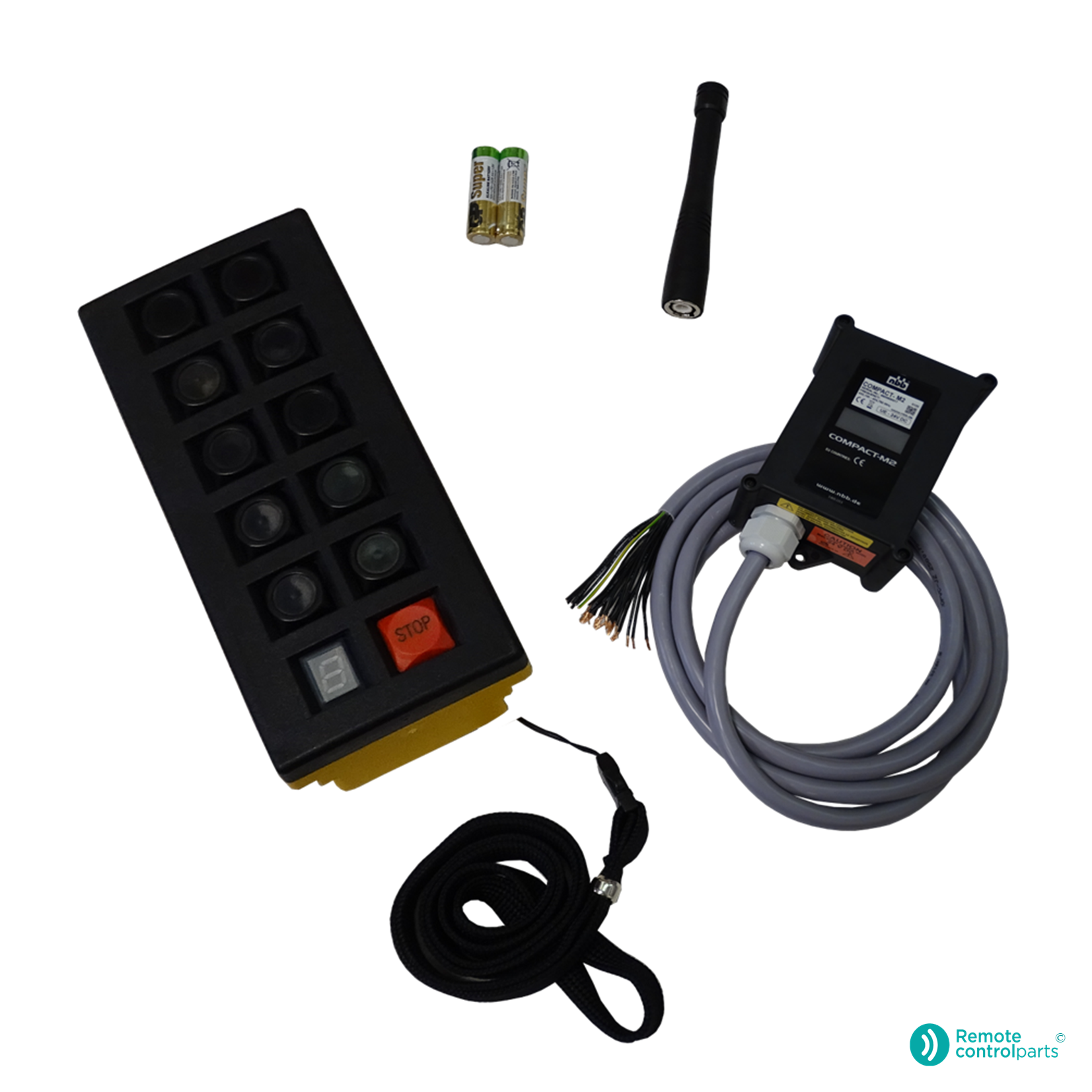

NBB® Planar D1/Compact M2-R7 12/2, system
Original spare part
NBB® Planar D1 transmitter:
8 push buttons, single step
Start push button
Stop push button
Frequency push button
7-segment LED display
IP65
Frequency: 434 MHz
Range: up to approximately 100 meters (open field)
Working temperature: -20°C – +70°C

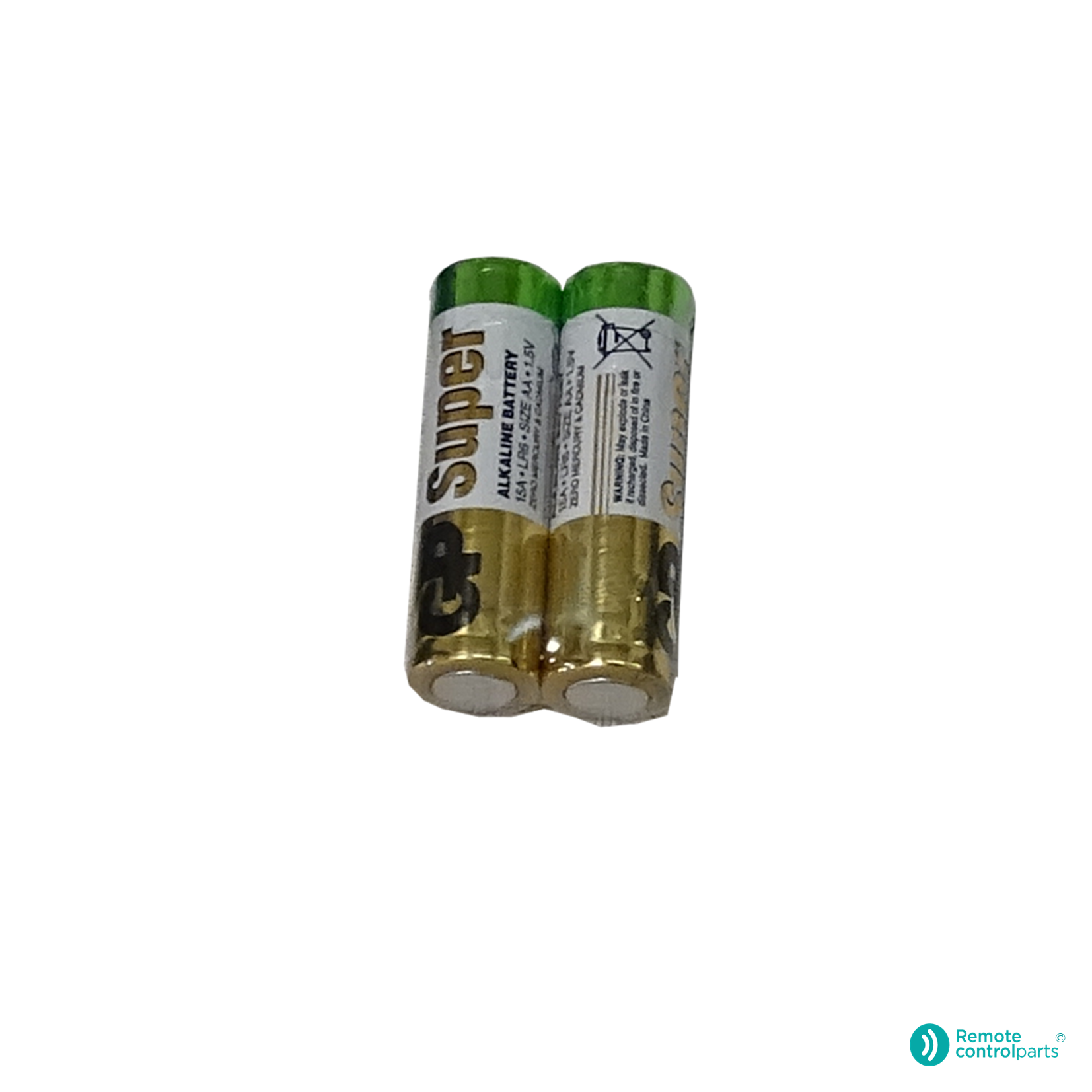

Batteries: 2 x AA
Dimensions: 123 mm x 56 mm x 37 mm
Weight: approximately 150 grams (without batteries)

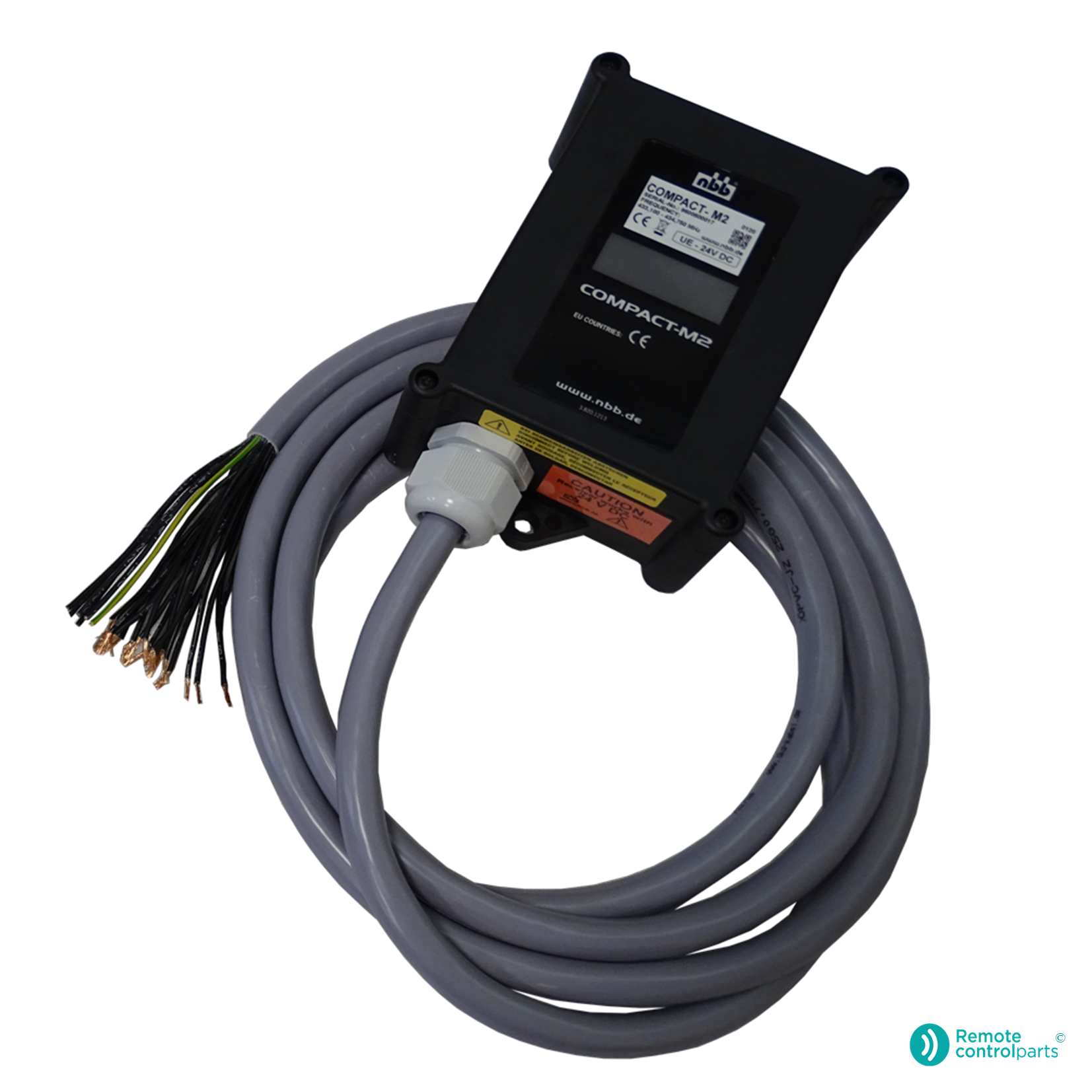

NBB® Compact-M2 R7 receiver:
7 programmable relays
IP65
Frequency: 434 MHz
24 VDC
Working temperature: -20°C – +70°C

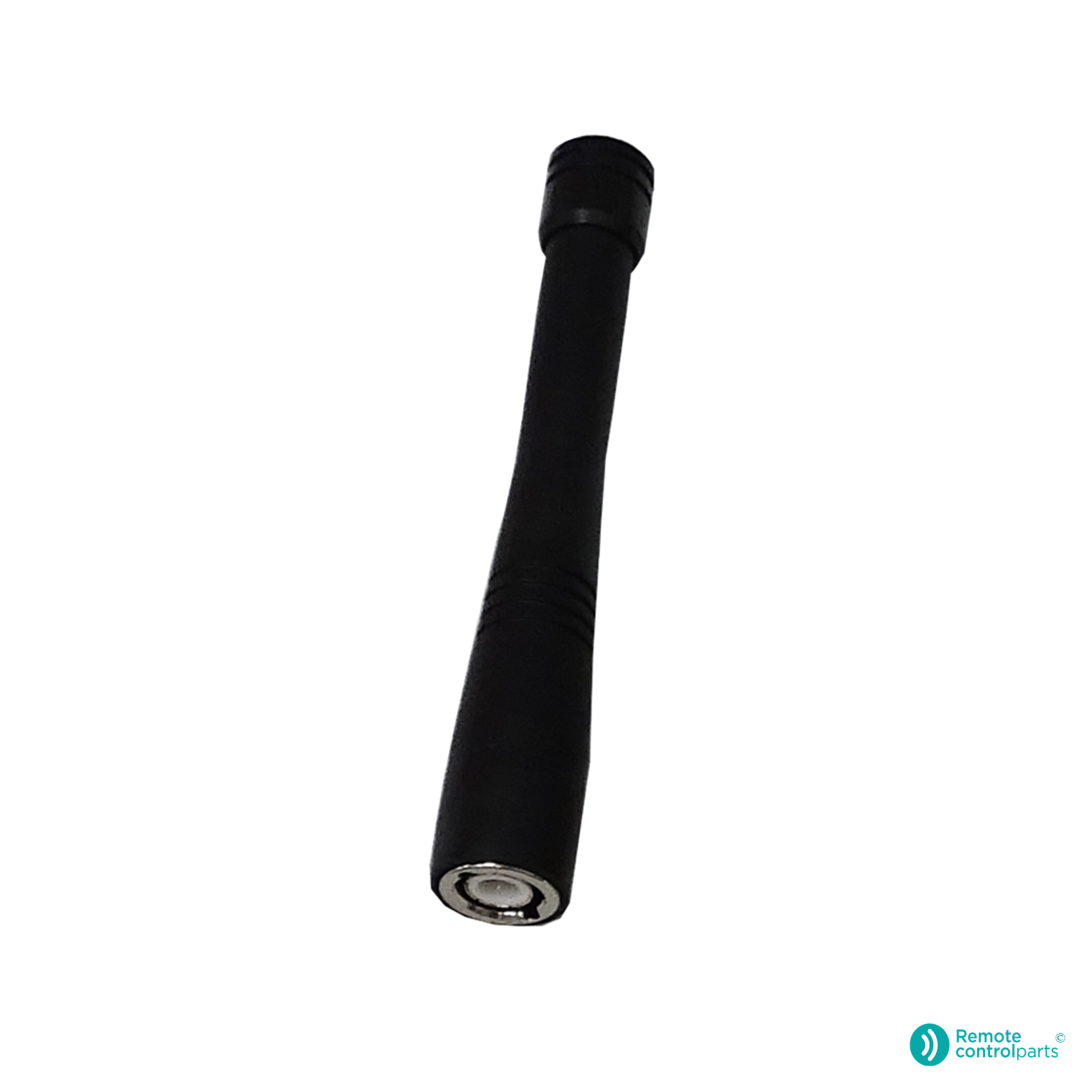

External antenna
Connection cable, approximately 2 meters
Dimensions: 114 mm x 60 mm x mm
Weight: approx. 800 grams
Other:

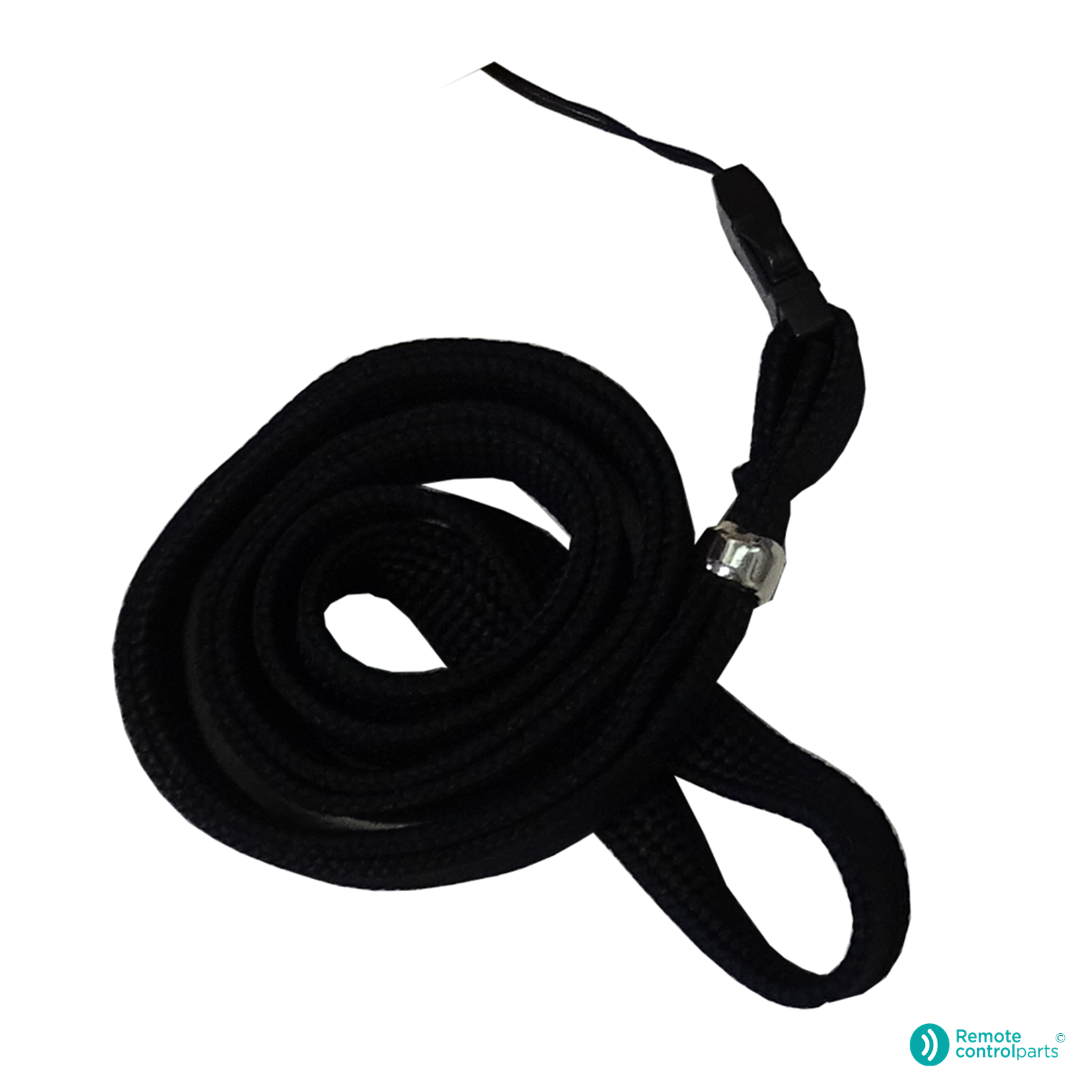

Carrying cord
Push button symbols
User manual
| Weight | 2,0 kg |
|---|---|
| Brands | NBB® |
| Remote control type | Wireless control |
| Controller type | Push Button |
| Frequency | 434 MHz (frequency block) |
| Complete systems | Complete system |
| Number of push buttons | 8 |
| Battery technology | AA |
| Stop Button | Without Stop Button |
| Voltage | VDC |
| Country of Origin (CO) | Germany |
| HS code | 8526920090 |
Would you like to request a quote for this product? Then fill in the quote request form and we will contact you as soon as possible.
Request a quote
