Lodar® system 9000 serie

Name: Lodar® system 9000 serie
Brand: Lodar®
SKU: 9998
Availability: InStock

Lodar® system 9000 series
Original spare part

Lodar® hand transmitter 9000 series
Available in 2, 4 and 6 functions
Lodar® receiver 9000 series

Item number: -

From € 384,24

per piece

excl. VAT

In stock, shipped within 1-2 working days

Wireless Controllers:

Clear

Number of pieces:

Total price:

€ 384,24

excl. VAT

Description

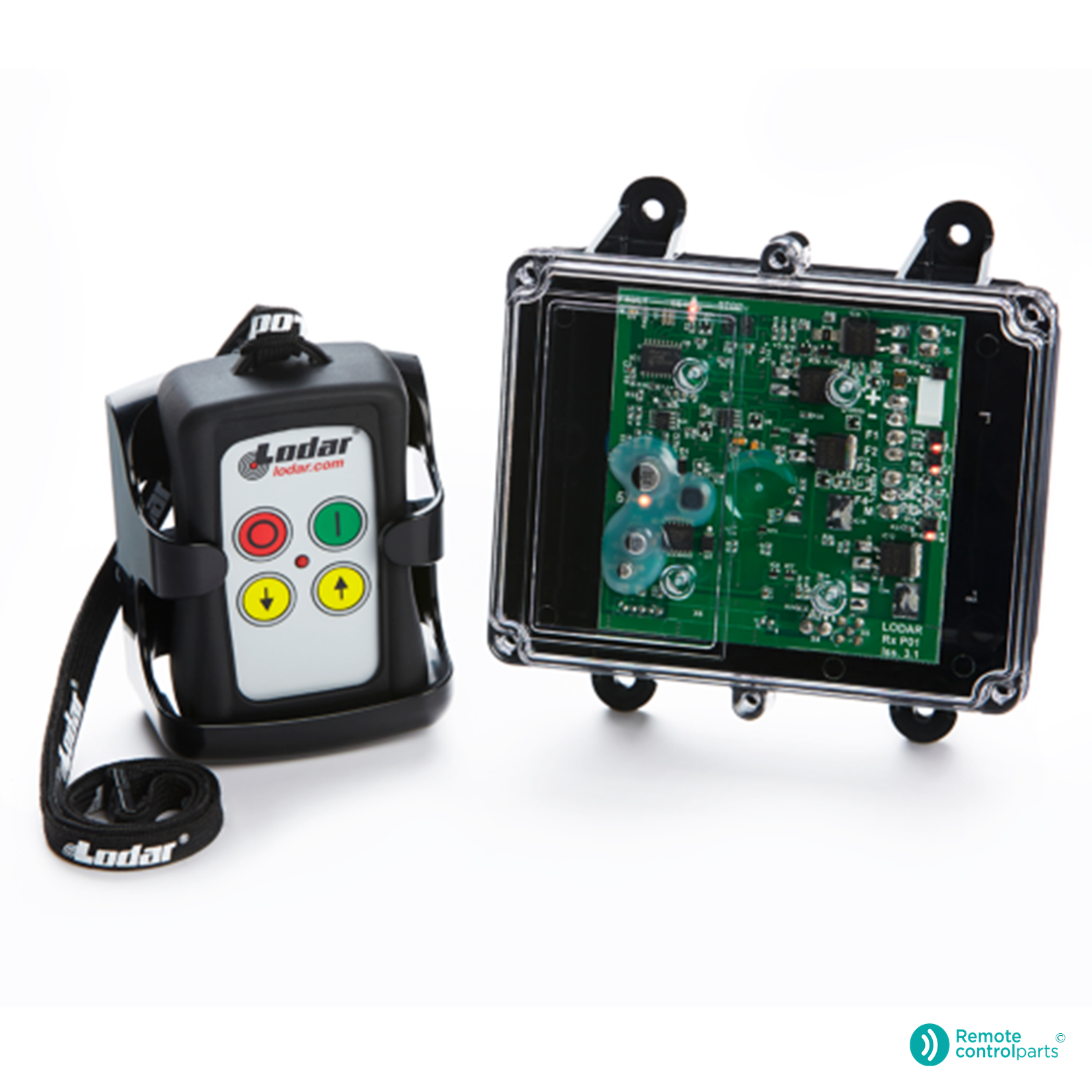

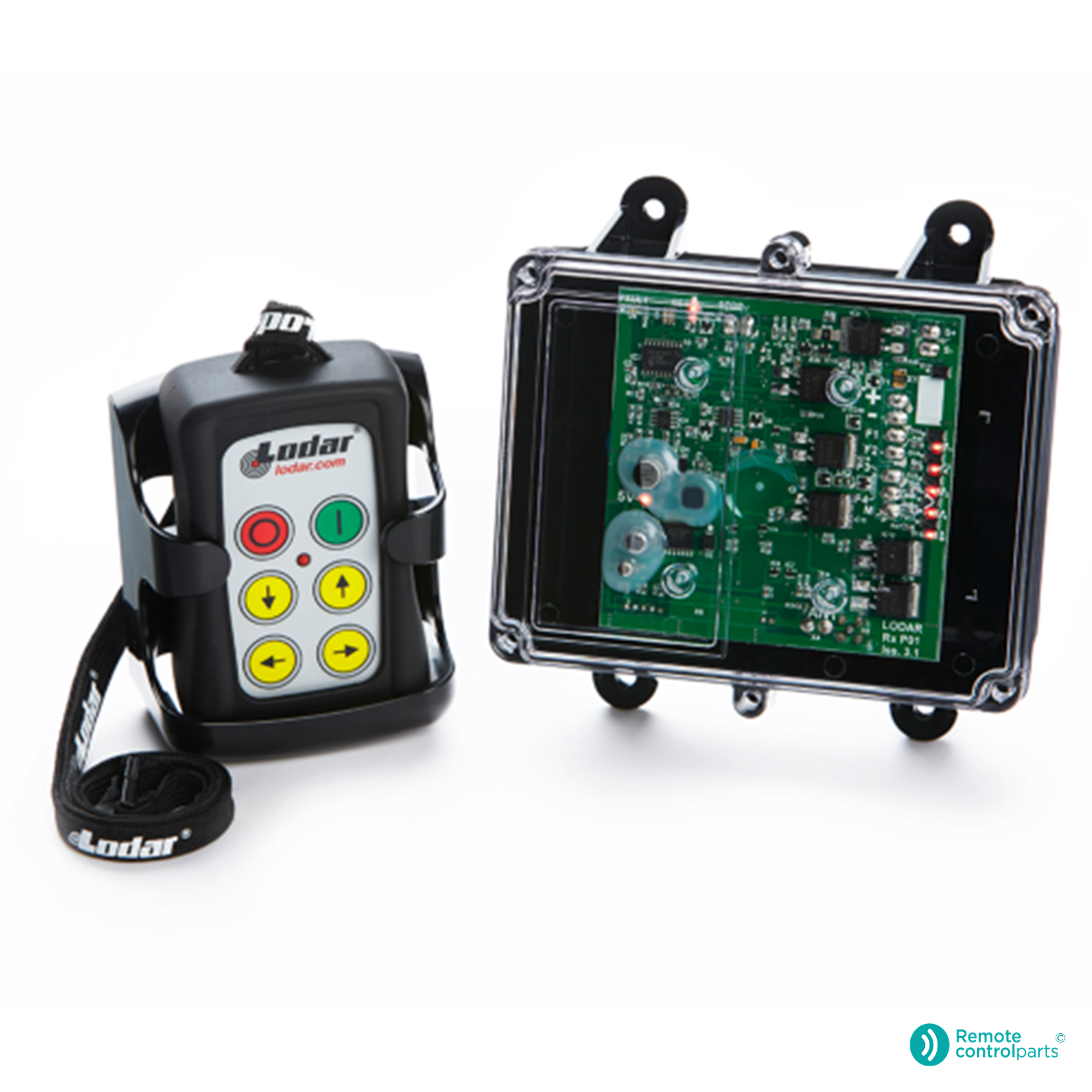

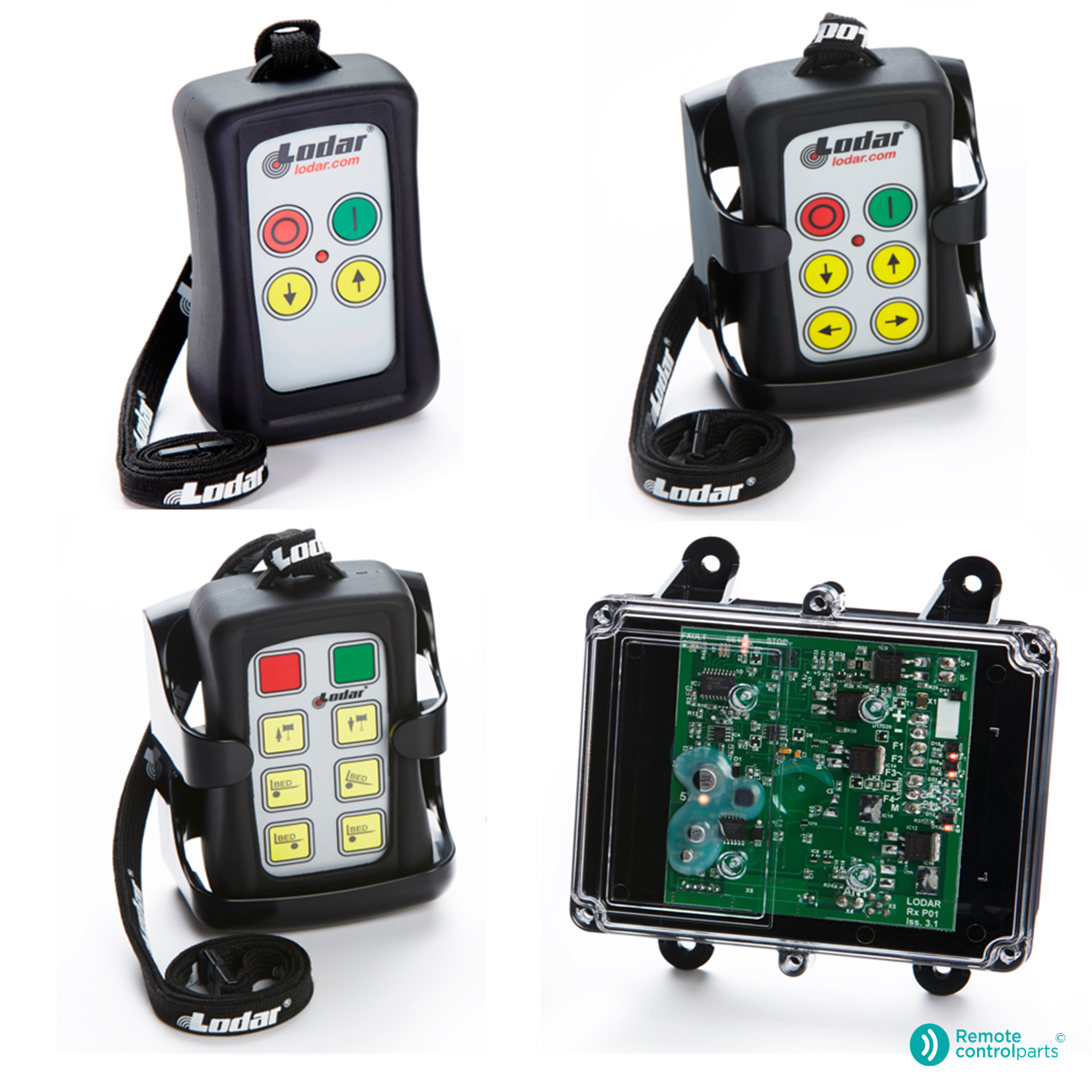

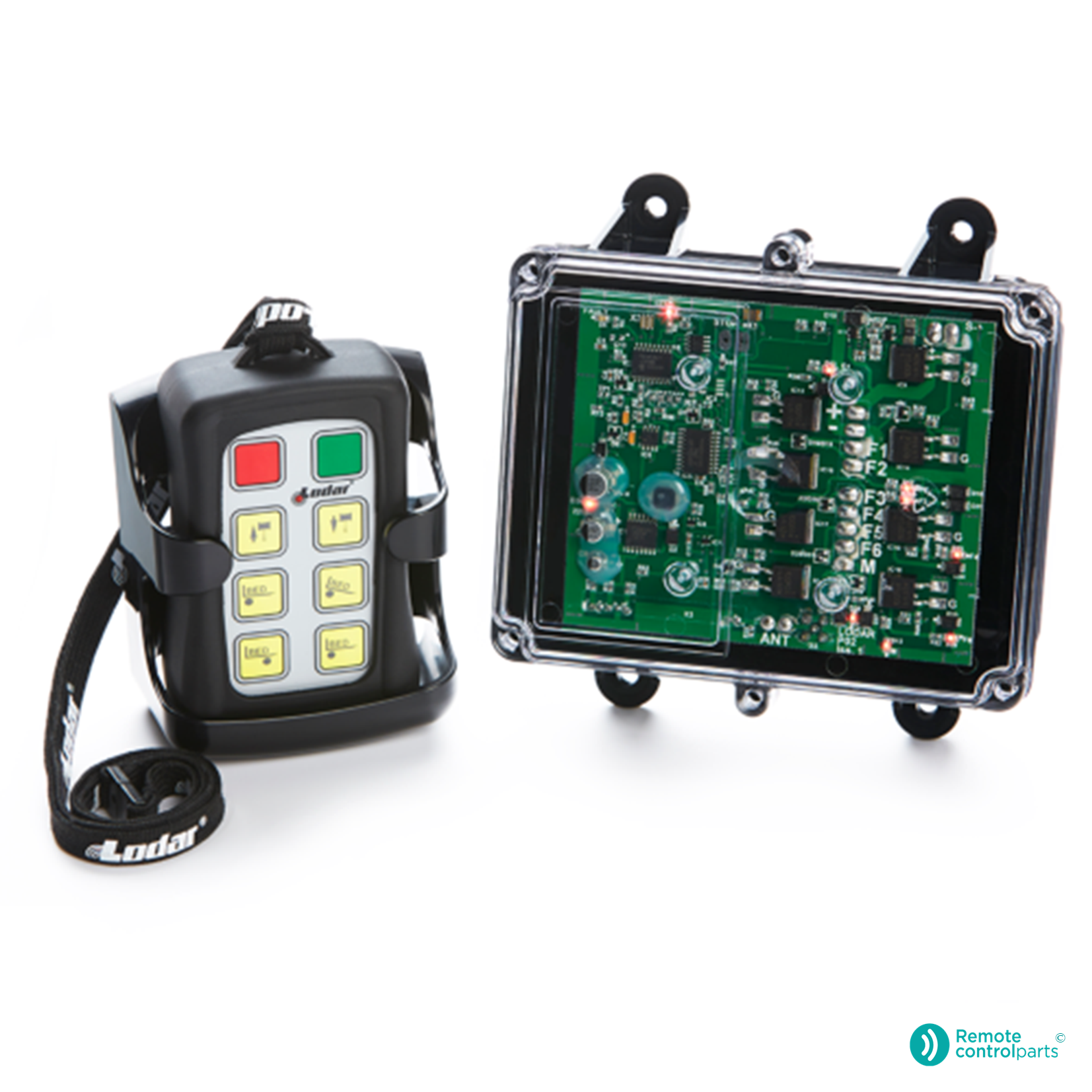

Lodar® system 9000 series
Original spare part

Lodar® hand transmitter 9000 series
– Standard hand transmitter
– IP67 class
– Transmitter range: 60 meters (broadband)
– Power supply: 9V (block battery)
– Available in 2, 4 and 6 functions
– Dimensions: 102 mm x 28 mm x 60 mm
Option: The holder is available separately

Lodar® receiver 9000 series
– Power supply: input: 8-30 VDC, output: 12/24 V
– IP65 class
– Working temperature: -30 ° C to 65 ° C
– receiver with 3 meter connection cable
– Circuit with FET (switching without relay for long life), maximum 3A per output
– Stop output
– Internal antenna, external antenna optional
– Dimensions: 120 mm x 90 mm x 40 mm

Other:
– Carrying strap
– Instructions

Specifications

Weight	1,0 kg
Brands	Lodar®
Remote control type	Wireless control
Complete systems	Complete system
Controller type	Push Button
Number of push buttons	2, 4, 6
Stop Button	Without Stop Button
Battery technology	9V
Frequency	434 MHz (frequency block)
Voltage	VDC
Country of Origin (CO)	England
HS code	8526920090
