Home » Shop » Danfoss® / Ikusi® TM70 2 13 system

Item number: -

Danfoss® / Ikusi® TM70 2 13 system

Name: Danfoss® / Ikusi® TM70 2 13 system
Brand: Danfoss®/Ikusi®
SKU: 10760
Price: 1843.16 EUR
Availability: InStock

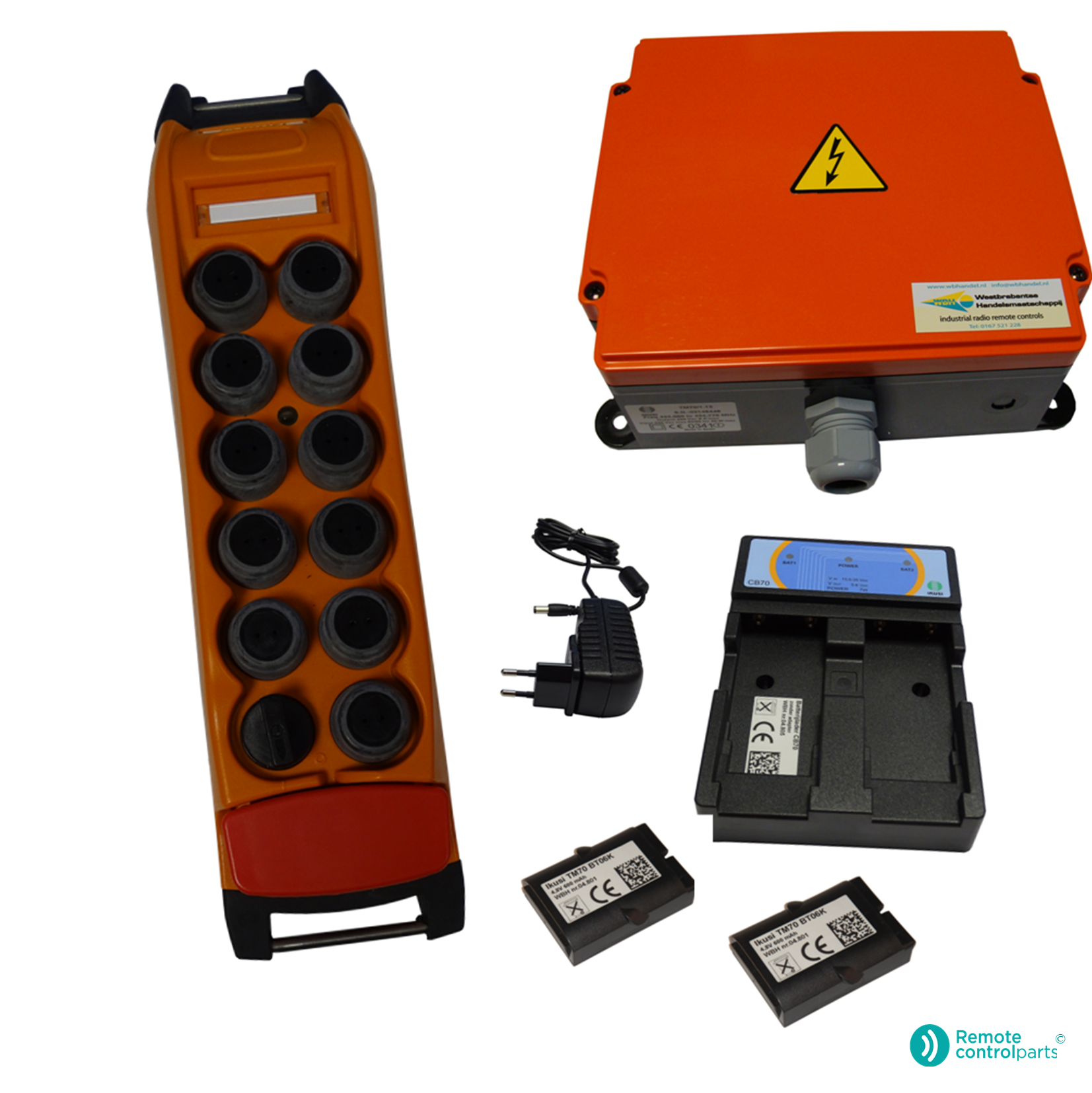

Danfoss®/Ikusi® TM70/2.13 system
Original spare part

Transmitter: 10 push buttons, start, stop button, key switch
Receiver
Battery charger with power adapter
2 batteries

For transmitter: Danfoss®/Ikusi® TM70 2.13

From € 1.843,16

per piece

excl. VAT

From € 2.230,22 incl. VAT

In stock, shipped within 1-2 working days

Receiver Type and Power:

Clear

Number of pieces:

Total price:

€ 1.843,16

excl. VAT

Request a quote

Description

Danfoss® / Ikusi® TM70 2 13 system
Original spare part

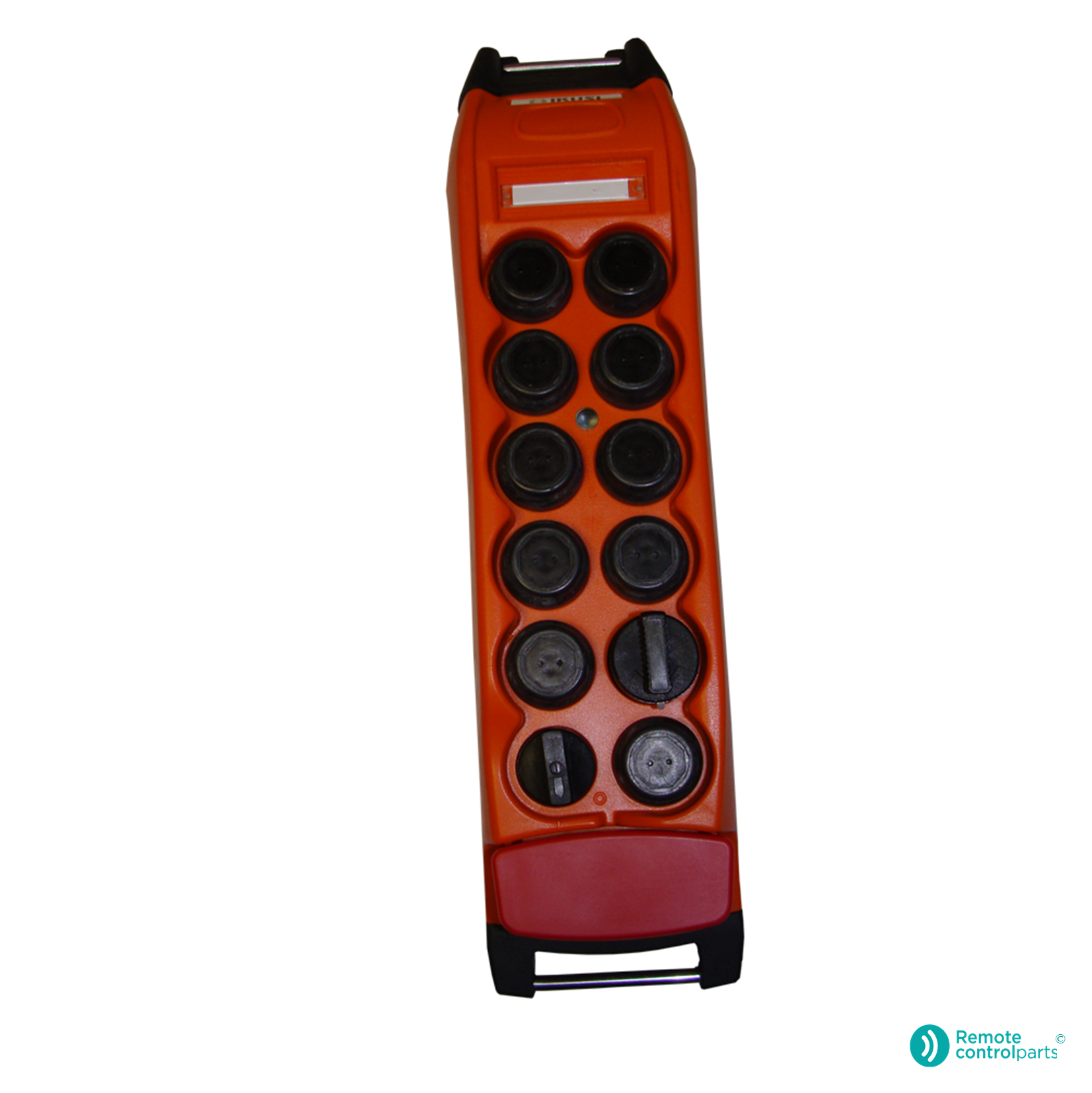

Danfoss® / Ikusi® transmitter TM70/2.13:
10 function push buttons
1 start button
1 stop button (red), safety category 3
1 Key switch
Eeprom (programming key)
Frequencies: 870 MHz/433 MHz
Capacity (ERP): >5 mW (870 MHz), >10 mW (433 MHz)
Degree or protection: IP65
Operating temperature: – 20°C tot +65 °C
Measurements: 265 mm x 67 mm x 57 mm (lxwxd)
Weight with battery: 550
Options: territorial restriction, LCD-display and selection switch/rebounding

Danfoss® / Ikusi® receiver TM70.13RX:
Feeds voltage: 48, 115, 230VAC, 9 – 35 VDC
Number or outputs: 13
Other outputs: start, stop and safety
Max. current per output: 8 A with 230 VAC
Degree or protection: IP55
Operating temperature: – 20°C tot +70 °C
Connections: plug-in terminal strip, M32 swivel output
Measurements: 285 mm x 200 mm x 110 mm (lxwxd)
Weight: 2200 gram

Danfoss® / Ikusi® battery charger CB70:
Quick charger for 2 batteries
Power supply

Danfoss® / Ikusi® battery BTO6K:
2 batteries (original spare part) 4.8V 600 mAh, Ni-Hh

Other:
Strap
User manual
Wiring diagram
Internal antenna

Optional:
external antenna on the receiver

For transmitter: Danfoss®/Ikusi® TM70 2.13

Specifications

Weight	3,5 kg
Brands	Danfoss®/Ikusi®
Remote control type	Wireless control
Controller type	Push Button
Complete systems	Complete system
Number of push buttons	10
Battery technology	Ni-Mh
Frequency	434 MHz (frequency block), 868 MHz (frequency block)
Stop Button	With Stop Button
Voltage	VAC, VDC
Country of Origin (CO)	Spain
HS code	8526920090
