Name: Autec® Lift T8B - ACRH11, system
Brand: Autec®
SKU: woocommerce_gpf_15780
Price: 850.00 EUR
Availability: InStock

Autec® Lift T8B – ACRH11, system

Autec® Lift T8B – ACRH11, system
Original spare part

Autec® Lift T8B transmitter
8 push buttons, double step. Bottom right: suitable for the start function and optional for the horn
4 LEDs
1 stop button: SIL 2 / PL d; cat. 3
1 removable T-key
Autec® ACRH11 receiver
Compact base station
11 relays
Autec® battery charger ULC05V
Autec® batteries LPM00

For transmitter: Autec® Lift T8B

€ 850,00

per piece

excl. VAT

€ 1.028,50 incl. VAT

Weight	2 kg
Brands	Autec®
Remote control type	Wireless control
Complete systems	Complete system
Controller type	Push Button
Number of push buttons	8
Frequency	2.4 GHz (frequency block)
Stop Button	With Stop Button
Battery technology	LiPo
Voltage	VAC
Country of Origin (CO)	Italy
HS code	8526920090

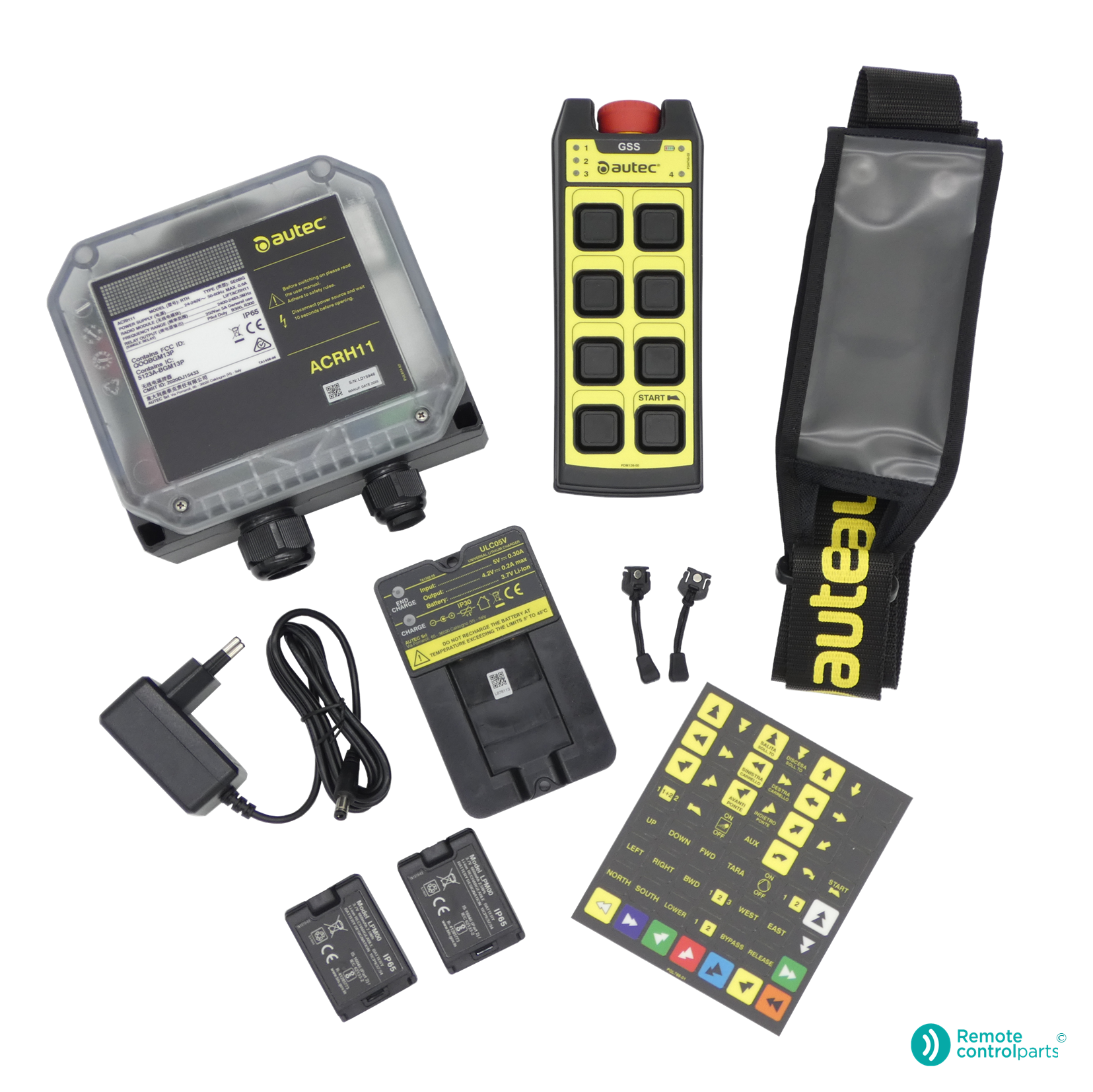

Autec® Lift T8B – ACRH11, system
Original spare part

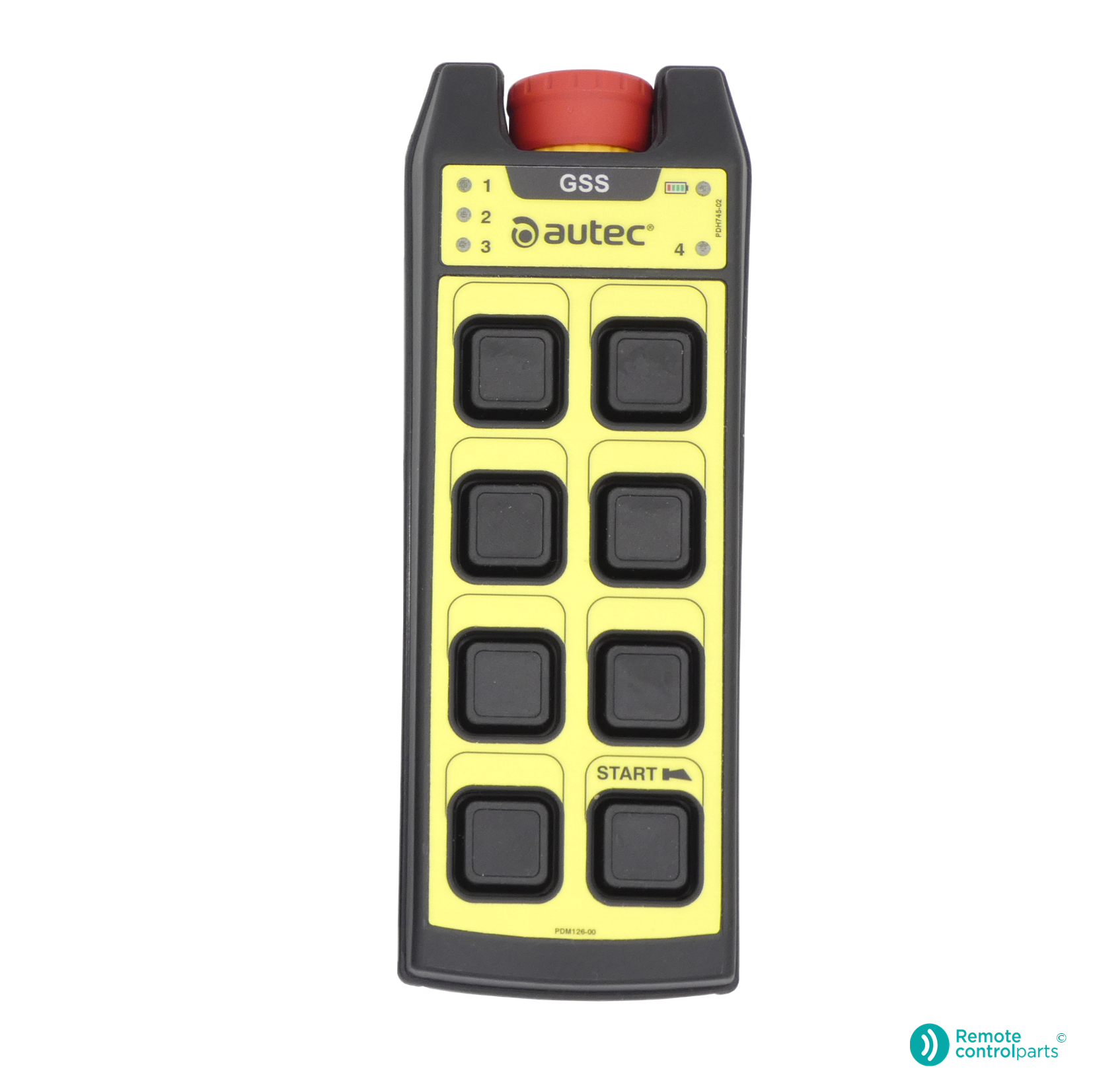

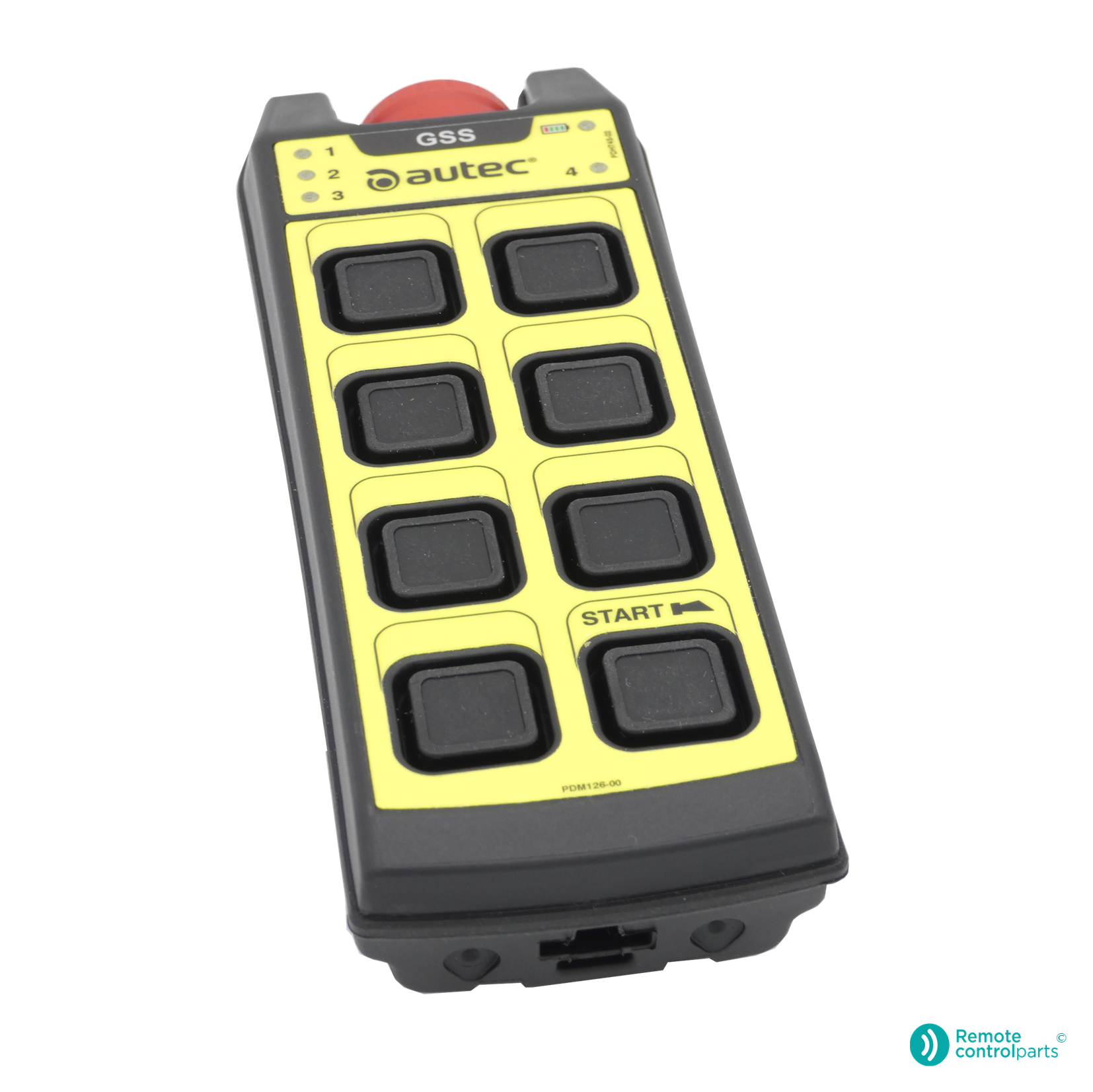

Autec® Lift T8B transmitter
8 push buttons, double step. Bottom right: suitable for the start function and optional for the horn
4 LEDs

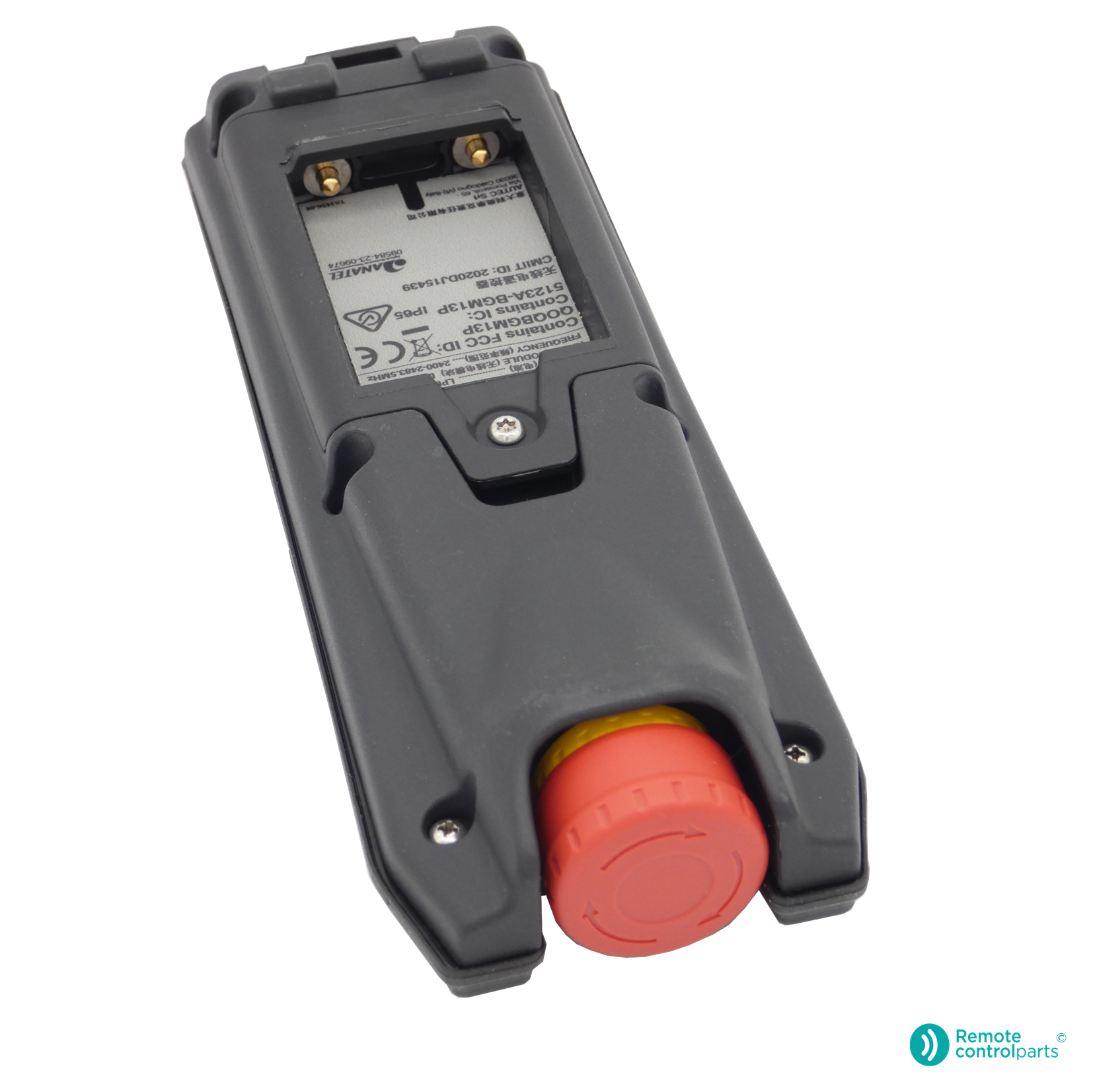

1 stop button: SIL 2 / PL d; cat. 3
1 removable T-key
Bluetooth
“My lift Autec” app
Internal antenna

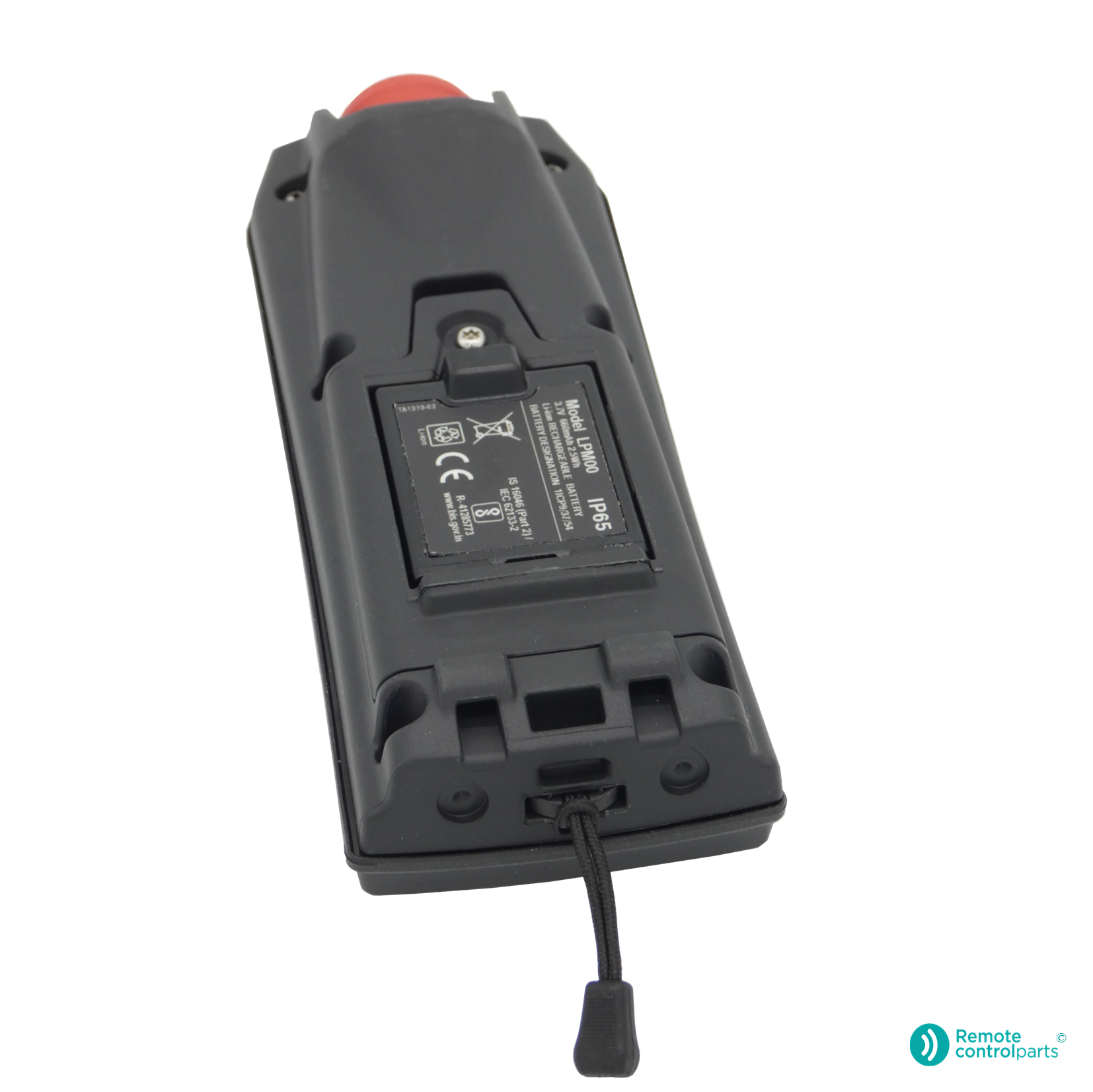

Power supply: Li-Po (LPM00)
Frequency: 2.4 GHz
Operating range: ± 75 metres
Protection class: IP65
Operating temperature: -20 °C to +60 °C
Dimensions: 64.5 mm x 179 mm x 37.5 mm (wxhxd)

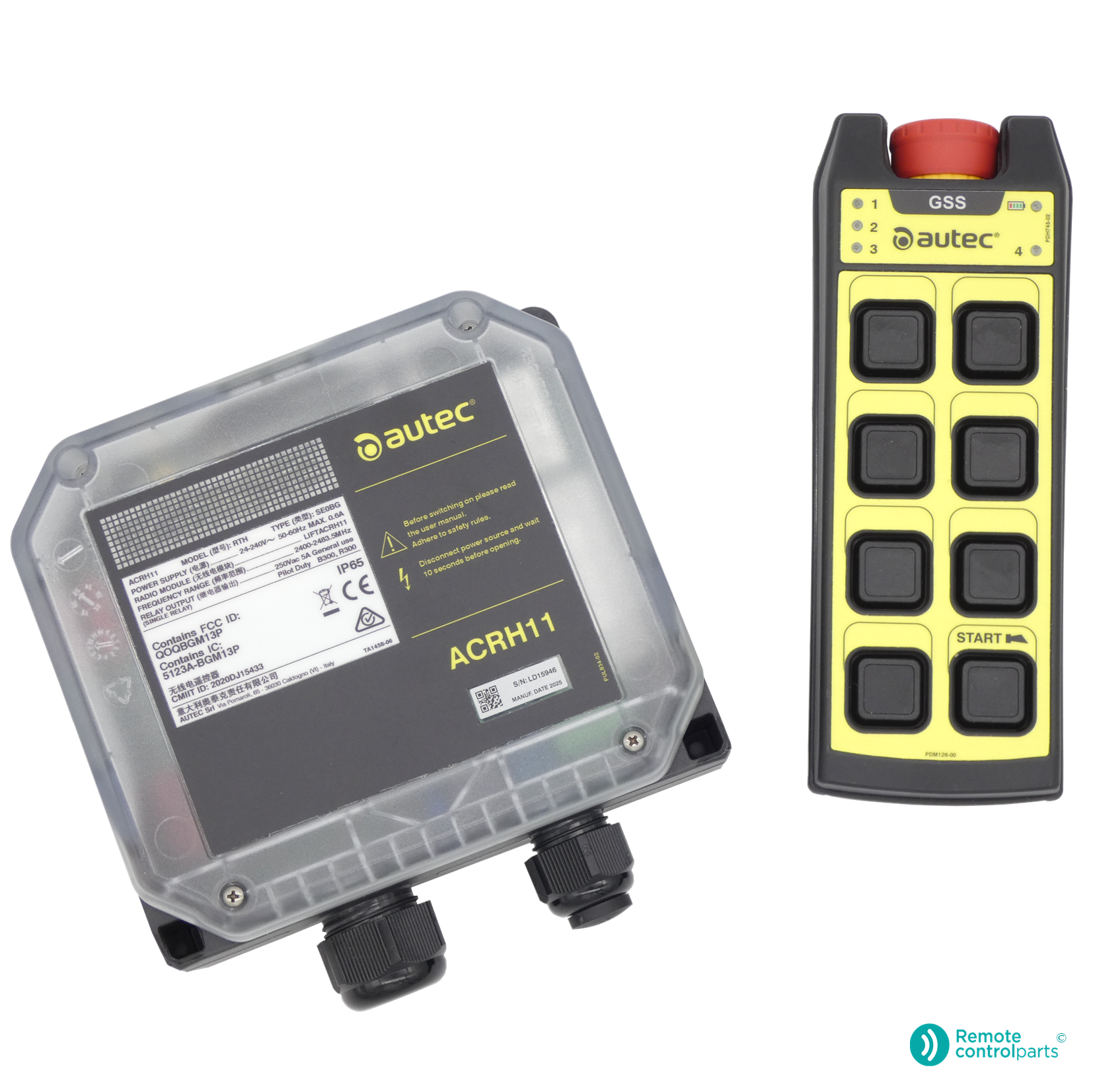

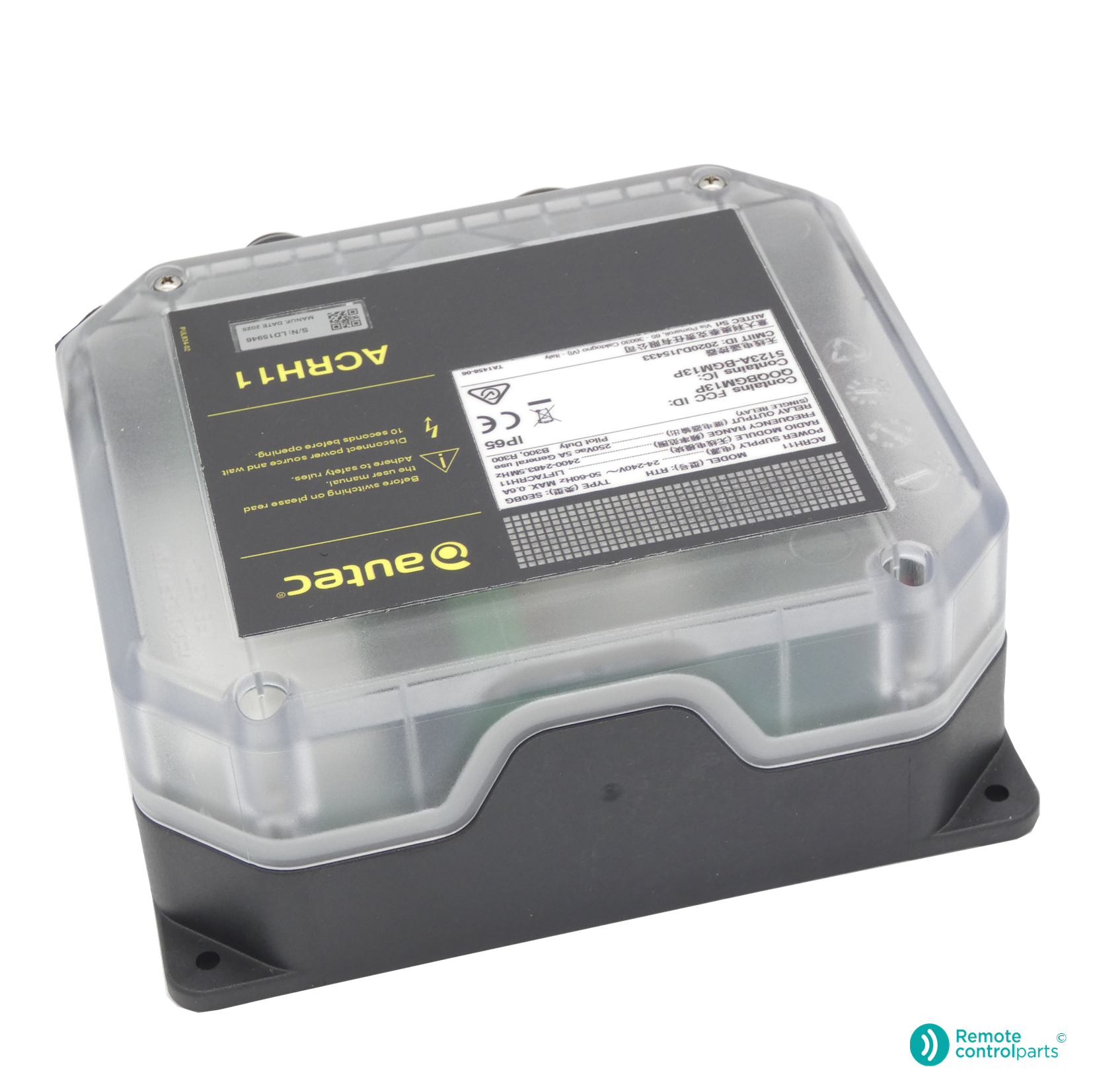

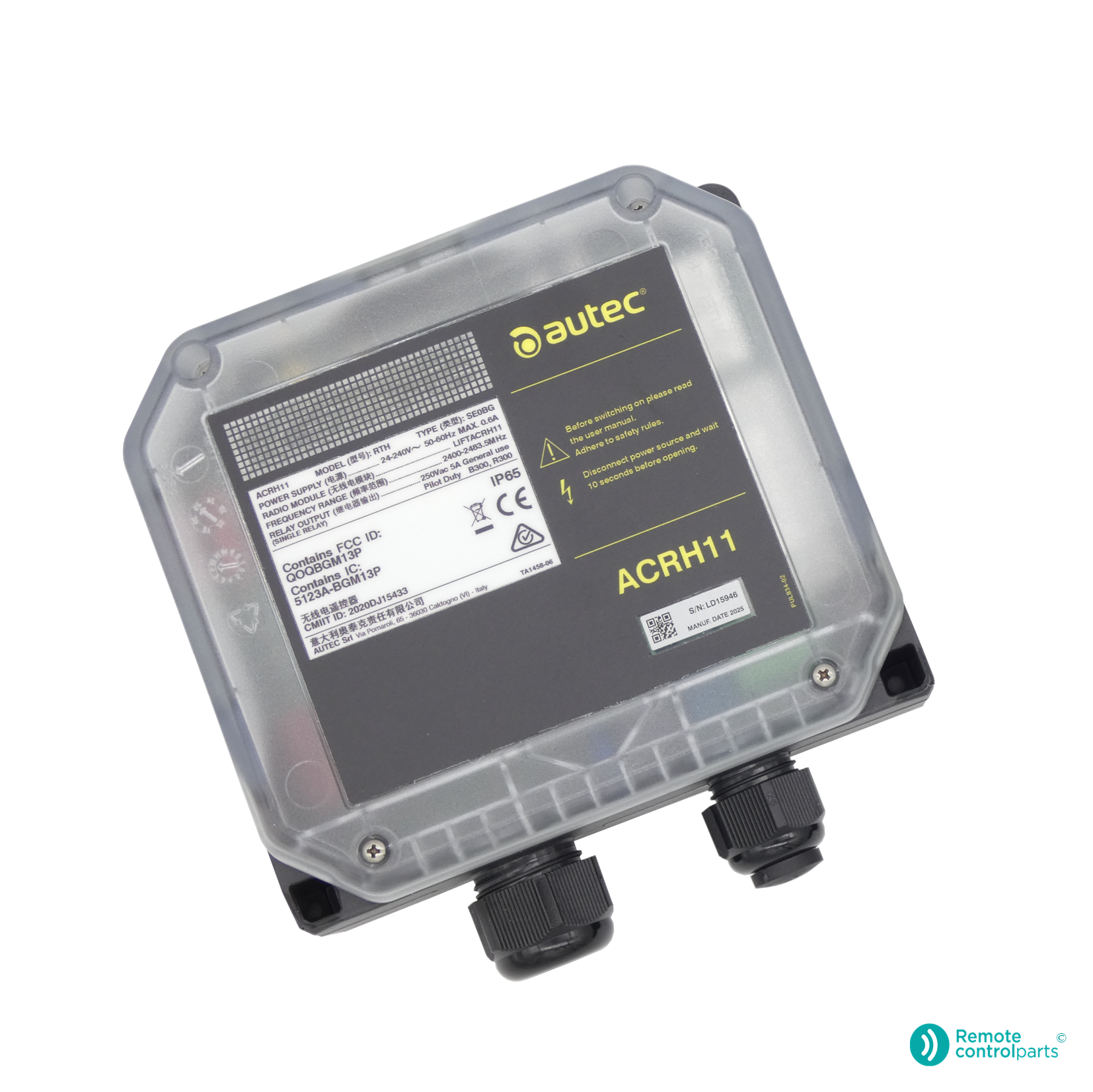

Autec® ACRH11 receiver
Compact base station
11 relays
Semi-transparent cover
Internal antenna (external optional)
Power supply: 24-240 VAC
Frequency: 2.4 GHz
Protection class: IP65
Operating temperature: -20 °C to +70 °C
Dimensions: 150 mm x 134.5 mm x 60 mm (wxhxd)

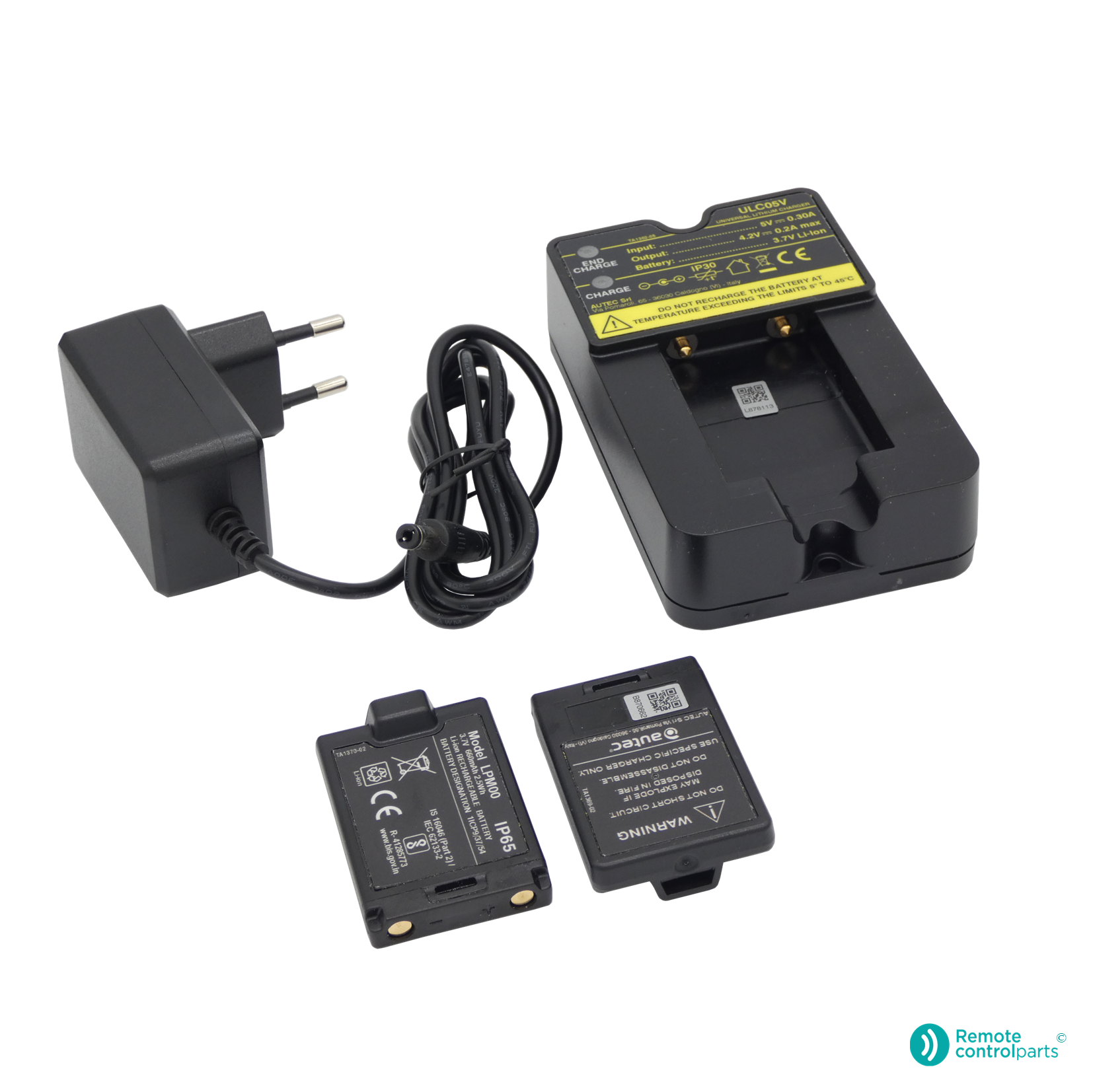

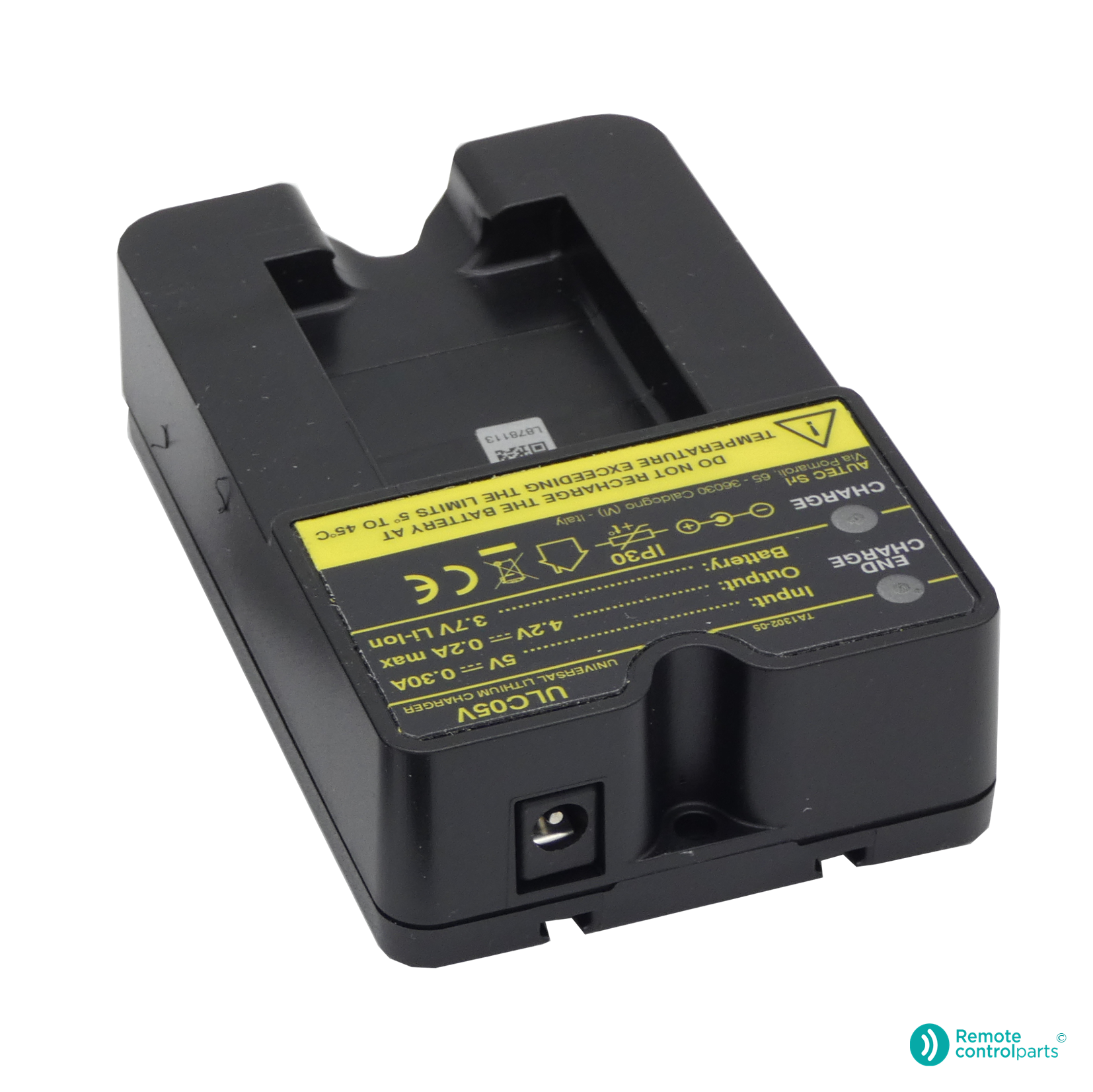

Autec® battery charger ULC05V
230 volt, Li-Ion

Autec® batteries
2 Autec batteries LPM00 (original spare parts), 3.7V 660 mAh, Li-Po

Other:

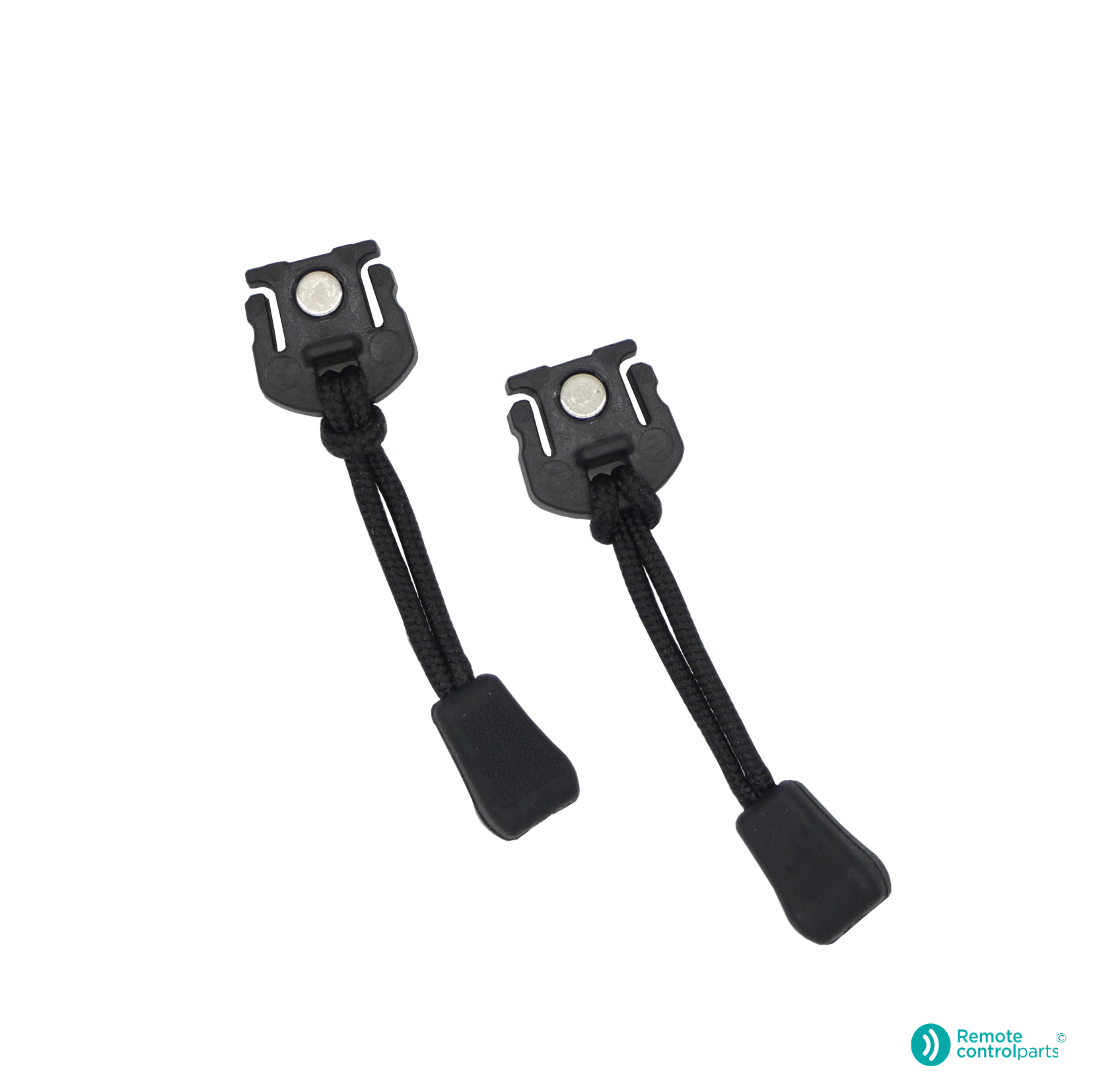

1 spare T-key

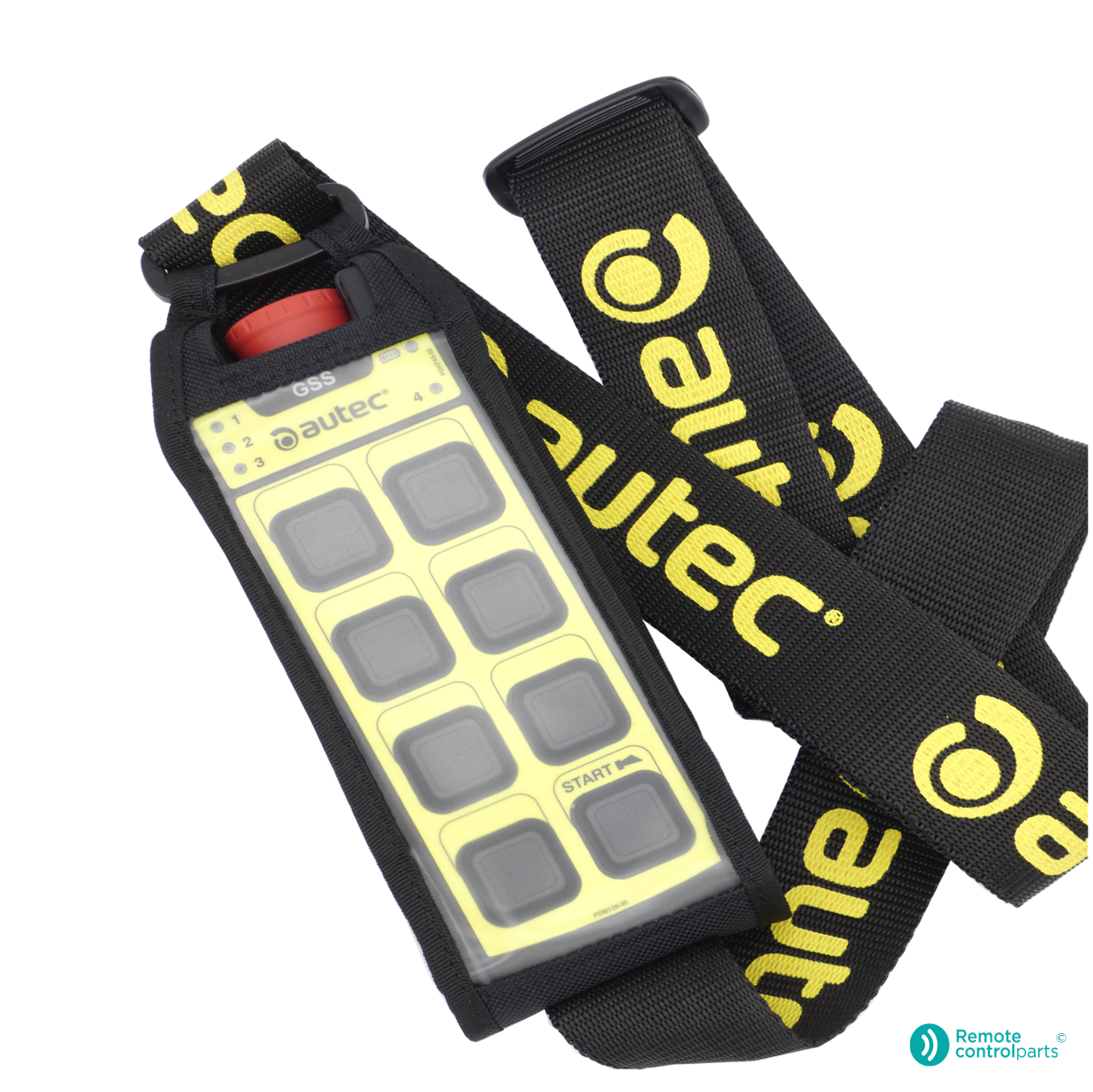

Protective cover with carrying strap
Instructions for use
Connection diagram
